Processor | CPU | 2nd Gen Intel® Xeon® Scalable Processors Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP | |||||||||||||||||||
Chipset | Intel® C621 | ||||||||||||||||||||
BOIS | 256Mb UEFI | ||||||||||||||||||||
System type | Memory Type | 2933/2666/2400/2133MHz ECC 3DS DDR4 LRDIMM, RDIMM | |||||||||||||||||||
Memory Capacity | 6 x DDR4 DIMM slots(6 channel) Up to 768GB 3DS ECC LRDIMM, DDR4-2933MHz; | ||||||||||||||||||||
DIMM Sizes | LRDIMM: 64GB, 128GB | RDIMM: 64GB, 128GB | ||||||||||||||||||||
System power supply | Power Input | 24Pin ATX CPU 8Pin x 1 | |||||||||||||||||||
Display | VGA | 1 X VGA | |||||||||||||||||||
Graphics | AST2400 | ||||||||||||||||||||
Administration | IPMI | ASPEED AST2400 BMC Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |||||||||||||||||||
Network | Network Controllers | 1 x Realtek RTL8211E PHY (dedicated IPMI) | |||||||||||||||||||
2 x I226LM/IT | |||||||||||||||||||||
Storage | M.2 | 1 x M.2( NVME) | |||||||||||||||||||
SATA | 6 x 7Pin SATA3 | ||||||||||||||||||||

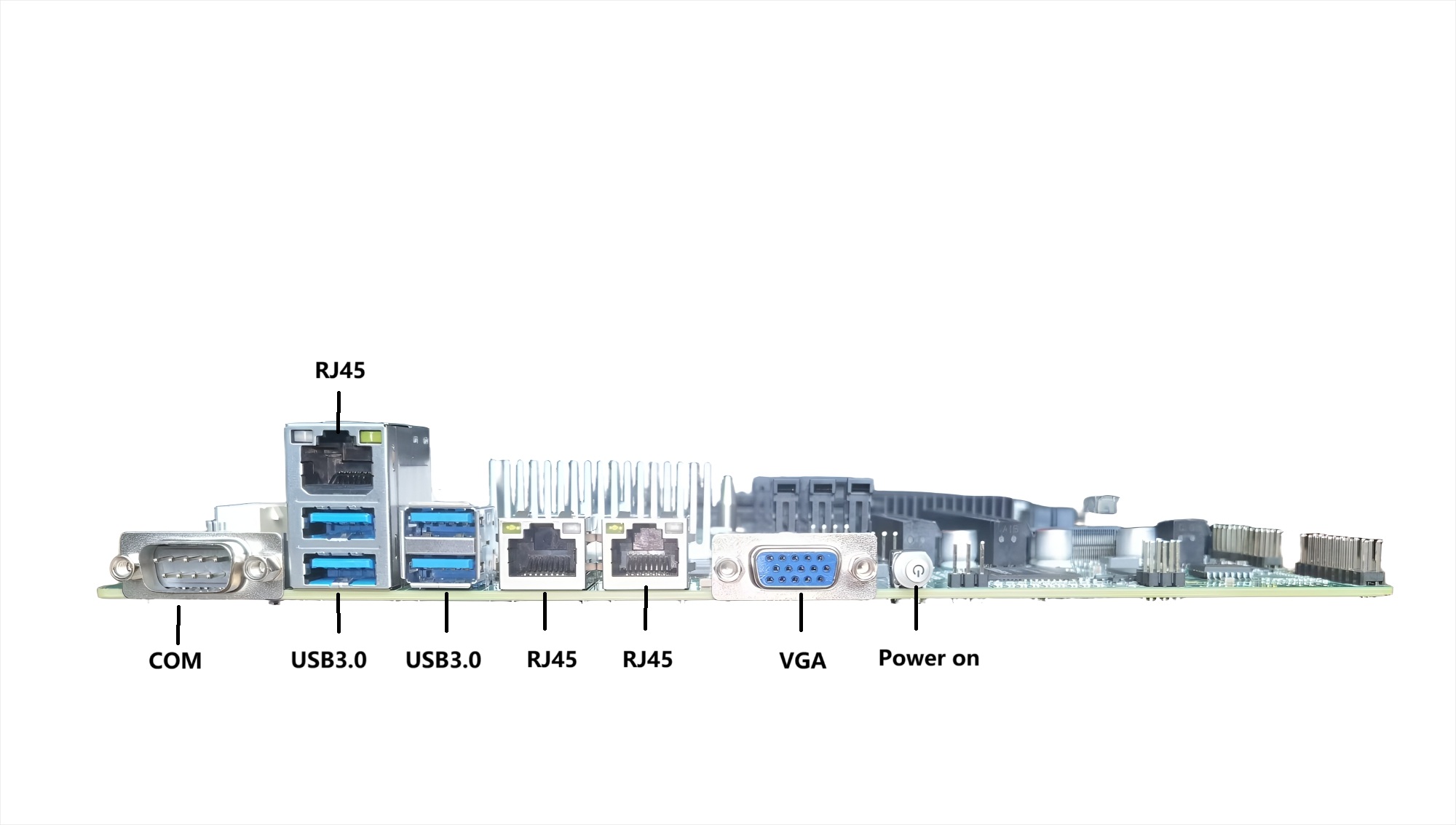

IO | COM | 1 x DB9 | |||||||||||||||||||
USB2.0 +IPMI | 2 x USB3.0 +RJ45(IPMI) | ||||||||||||||||||||
USB3.0 | 2 x USB3.0 | ||||||||||||||||||||
LAN | 2 × RJ45(10/100/1000Base-T) | ||||||||||||||||||||
VGA | 1 x DB15 | ||||||||||||||||||||
UID_BTN | 1 x UID_BTN(含LED) | ||||||||||||||||||||

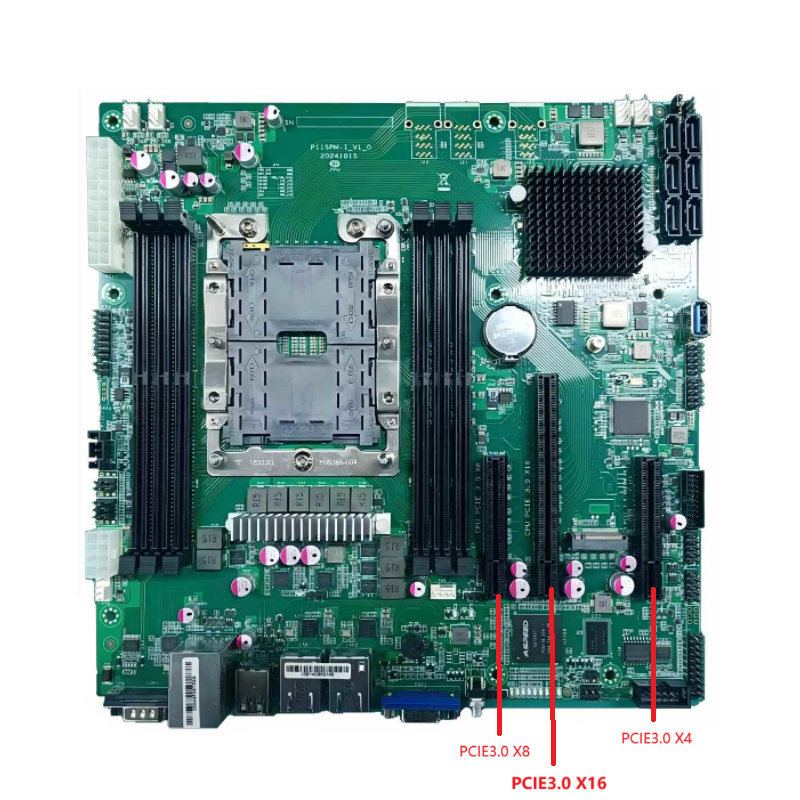

Internal Interface | PCI-E3.0 | 1 x PCI-E3.0 X8 2 x PCI-E3.0 X16 3 x PCI-E3.0 X4(IN X8) | |||||||||||||||||||
USB 2.0 | 4 x USB ( Header 2 x 5 2.54mm) | ||||||||||||||||||||
USB 3.0 | 1 x USB (Type A), 2 x USB ( Header 2 x 10 2.0mm) | ||||||||||||||||||||
I2C | 1 x I2C (Header 1 x 3 2.54mm) | ||||||||||||||||||||
FAN | 6 x PWM FAN(2 rear, 5front) | ||||||||||||||||||||
GPIO | 8 x GPIO (Header 2 x 5 2.54mm) | ||||||||||||||||||||
TPM | 1 x TPM | ||||||||||||||||||||
JFP | JFP1 Header(2 x 8 2.54mm) , JFP2 Header(2 x 5 2.54mm) |
