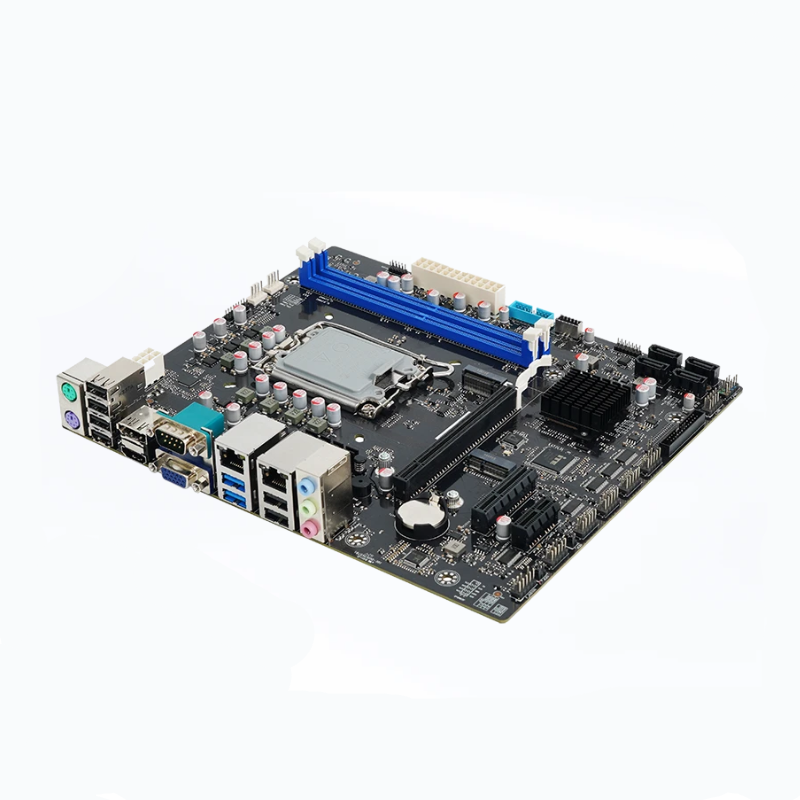

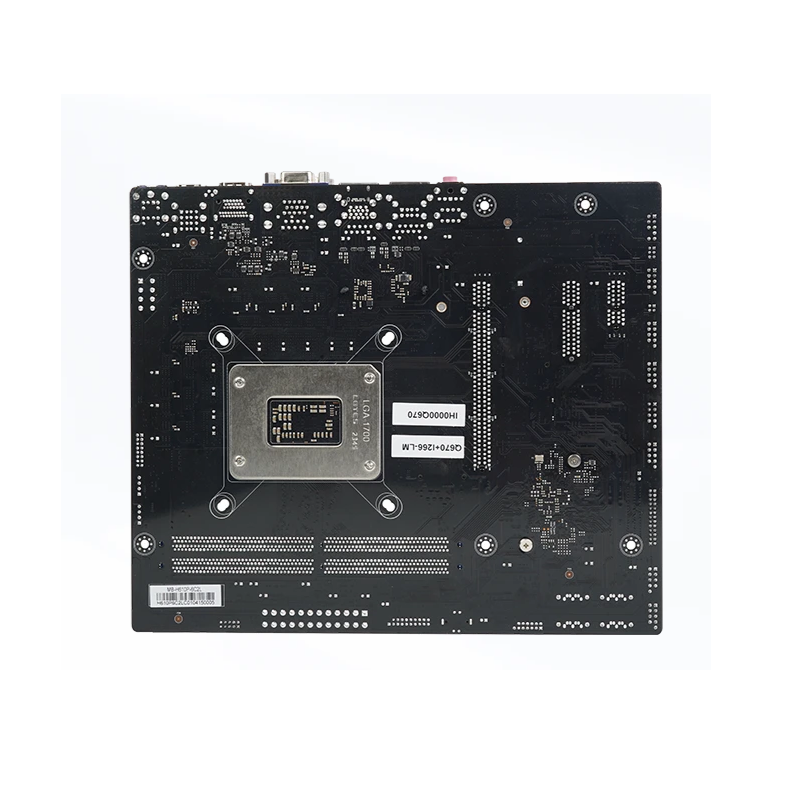

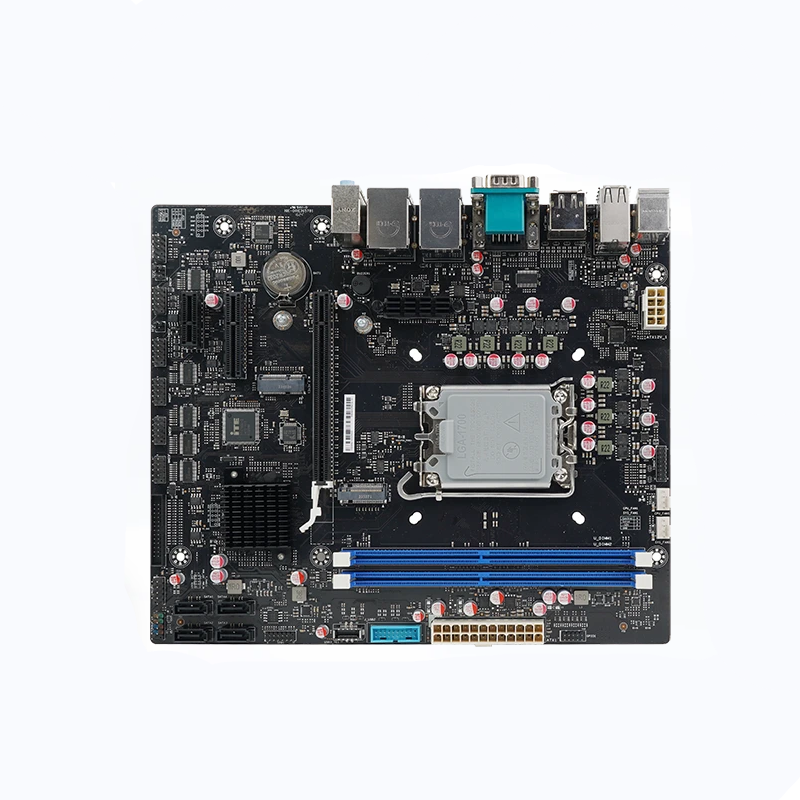

Desktop industrial control computer motherboard Model：LY-H610-6C2L

Model：LY-H610-6C2L

Details：》Support Intel ® 12th/13th/14th Processor 》Supports dual channel UDIMM, DDR4 memory, up to 64GB 》Supports four synchronous and asynchronous displays, VGA+HDMI+DP+HDMI pins (H610 only supports three displays, B660 and above bridge supports four displays) 》Supports Intel dual network ports (optional single network) 》Support one click system restore and keyboard shortcut backup/restore 》12 USBs: 4 * USB3.0+8 * USB2.0 》1 Type-E, expandable front Type-C (supported by bridges above B660) 》6 COM interfaces; 1 parallel port; 1 TPM 》1 M.2 M Key slot (PCIEx4); 4 SATA3.0 interfaces 》1 PCIe x16 slot; 1 PCIEx1 slot; 》1 PCIe x4 slot (H610 for X1 signal; Bridges above B660 are X4 signals) 》1 M.2 E Key slot (WIFI/Bluetooth) Product applicable industries: self-service teller machines, government and enterprise office machines, home entertainment, etc

Tel:+86-18938679872

Inquiry

Product specifications

processor	Intel®12th/13th/14th S Processor	Rear I/O	1*AUDIO
chipset	Intel® H610/B660/B760		LAN1+2*USB2.0
display chip	Intel®UHD Graphics		LAN2+2USB3.0(Optional 2USB3.0 or USB3.0+Type-C)
display output	VGA+HDMI 2.0+DP1.4+HDMI Pin Multi Display Supports Four Display Synchronous Asynchronous		1COM+1VGA; 1DP+1HDMI
display output	(H610 only supports three displays, bridges above B660 support four displays)		1 * REC button (supports system one click backup/restore and clear CMOS function)
COM	COM1 supports TTL by BOM; COM1/2/3/4 supports voltage selection by BIOS		4USB2.0; 1 PS/2 keyboard and mouse interface
COM	COM2 supports RS232/422/485; COM3 supports RS232/485 optional by Jumper	Built in pins	1 * AUDIO pin
Memory	2*U-DIMM DDR4 3200MHz Max64GB		5 * COM pin
sound effects	Onboard ALC897 audio decoding controller		1 * LPT pin
network card	Onboard 1 * Intel i219-V+1 * Intel i226-V network card		1 * USB 2.0 pin (expandable 2 * USB 2.0)
network card	(Optional options include 1 * i219 LM+1 * i226 LM)		1 * F_PANEL pin
storage	1M.2 M Key（PCIEx4） ; 4SATA3.0		4 * SATA3.0 interface
expansion slot	1 * M.2 E Key supports Wifi6 (CNVi)/Bluetooth;		1 * TPM pin
expansion slot	1 * PCIe x16 slot; 1 * PCIEx1 slot; 1 * PCIe x4 slot (H610 for X1 signal, B660 and above bridge chips for X4 signal)		1 * USB 3.0 pin (expandable 2 * USB 3.0)
I/O chip	IT8786E		1 * GPIO pin (4-channel GPI+4-channel GPO)
BIOS	AMI BIOS		1 * CPU_SAN pin
power supply	ATX (24+8 pins) power supply		1 * SYS-FAN pin
environment	Work: 0~60 ℃; Storage: -20 ℃~75 ℃		1 * HDMI pin
environment	0%~95% humidity, no condensation		1 * 24+8pin ATX socket
size	244 x 206 mm		1 * Type-E (optional for bridges above Class B)
