Access control recognition computer
  • Access control recognition computer
  • Access control recognition computer
  • Access control recognition computer
  • Access control recognition computer
  • Access control recognition computer

Access control recognition computer  Model:LY-FRRK8

  • Model:LY-FRRK8

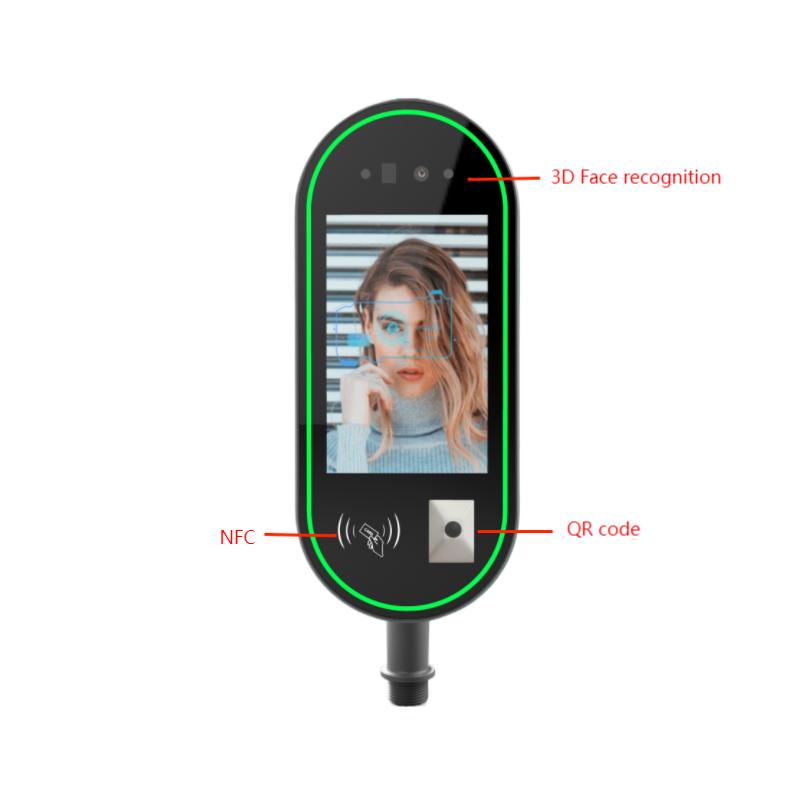

1. Smart communities and building management Accurate identity verification between residents and visitors is achieved through facial recognition, QR code scanning, and NFC technology, supporting remote permission management and visitor reservation systems. Especially suitable for high-rise residential and office buildings, it can be integrated into the property management platform to achieve full area access control linkage. 2. Safety management of educational institutions Deploy dual system hot switching devices at campus entrances and exits, supporting time-based permission management. It can be integrated with the attendance system to achieve facial recognition check-in, combined with electronic fence technology to prevent intrusion by external personnel. 3. Special adaptation for industrial scenarios Equipped with IP65 protection level and wide temperature and pressure (-30 ℃~70 ℃) design, it meets the requirements of harsh environments such as nuclear power and ports. Supports RS485/232 industrial interfaces and can be directly connected to PLC systems to achieve device linkage. 4. High security scenarios in government finance Adopting multi-layer asymmetric encryption algorithm and ECC elliptic curve technology, certified by Kirin system and adapted to domestic processors, it meets the data security requirements of the information and innovation environment. Military grade encrypted transmission can prevent the leakage of sensitive information. 5. Intelligent management of transportation hubs Support instant recognition of tens of thousands of facial recognition databases, which can be deployed in airports, stations, and other places to achieve two-way passenger verification. The built-in passenger flow statistics module can be linked to the security system for abnormal behavior warning.

Tel:+86-18938679872

Inquiry
  • Product specifications

    unctionalitytechnical specification
    systemAndroid 13
    CPURock Chip 3568
    RAM2GB
    SSD32GB
    hold8 " (800x1280), with touch, 24 hours working, 35,000 hours
    camera2M

    Case: 120 * 45 * 18mm, USB interface, 13.56MHz (ISO 14443 Type A and Type
    RFID ReaderB and ISO 15693, EMI authentication line 1.8 meters long connected to the face

    machine, the other end of the RFID of the gate
    Relay Controller4-way, two-way, receive and send the image signal
    communicationNetwork, Bluetooth, and NFC

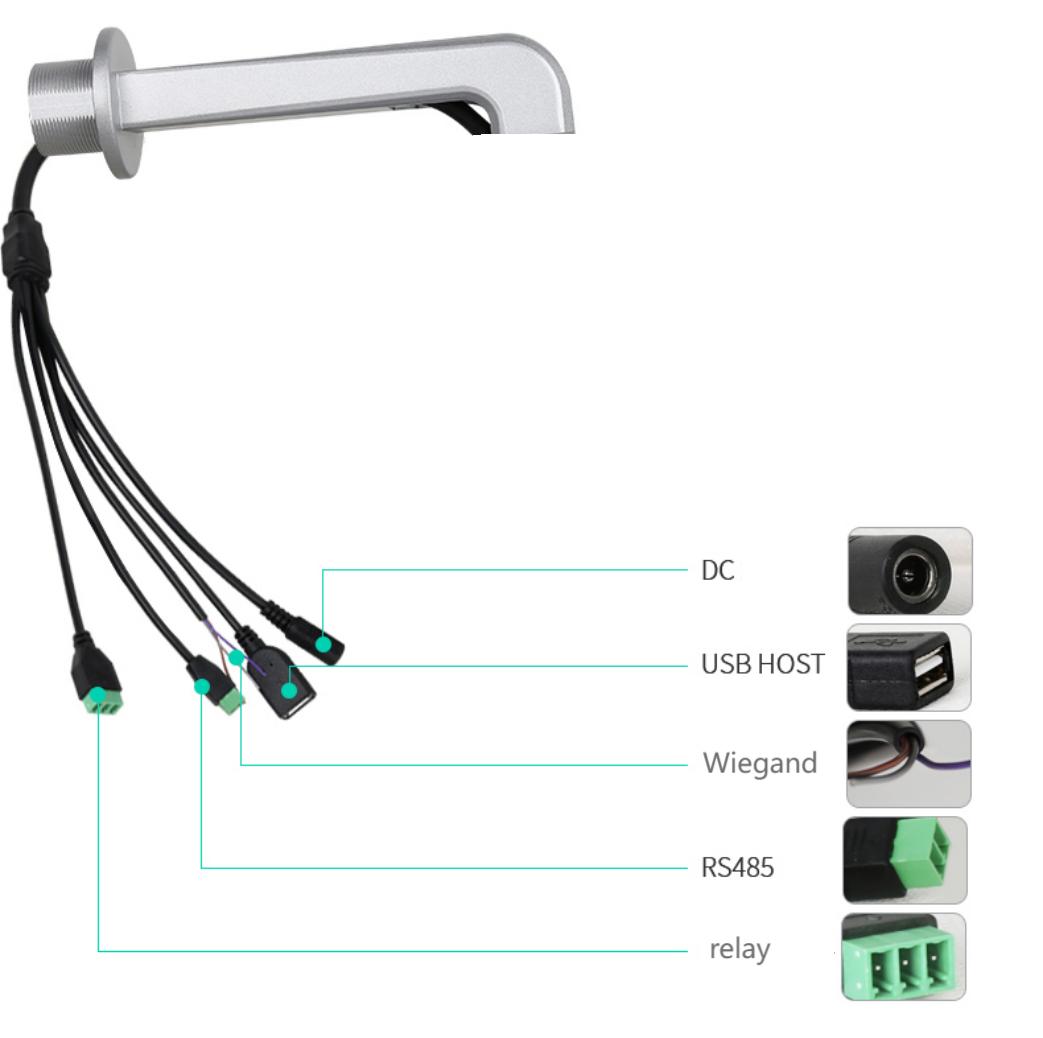

    joggle1 RS232,1Gigabit RJ 45,2 USB2.0,1 DC In, 1 Weigen, 1 RFID line
    WeigenTwo-way, receive and send Android 13 signal, built-in machine inside
    support5-10CM expansion
    hullDimensions of 268mmx 146mmx 42mm
    work environment-5℃  ~  50℃
    attestationIP60, CE, RoHs, Optional: Quality Mark, ISO
    weight2.8KG
    packDimensions of 320mmx 250mmx 150mm
    remarks3 Years Warranty


  • SR-V02 Video

  • SR-V03 Video
