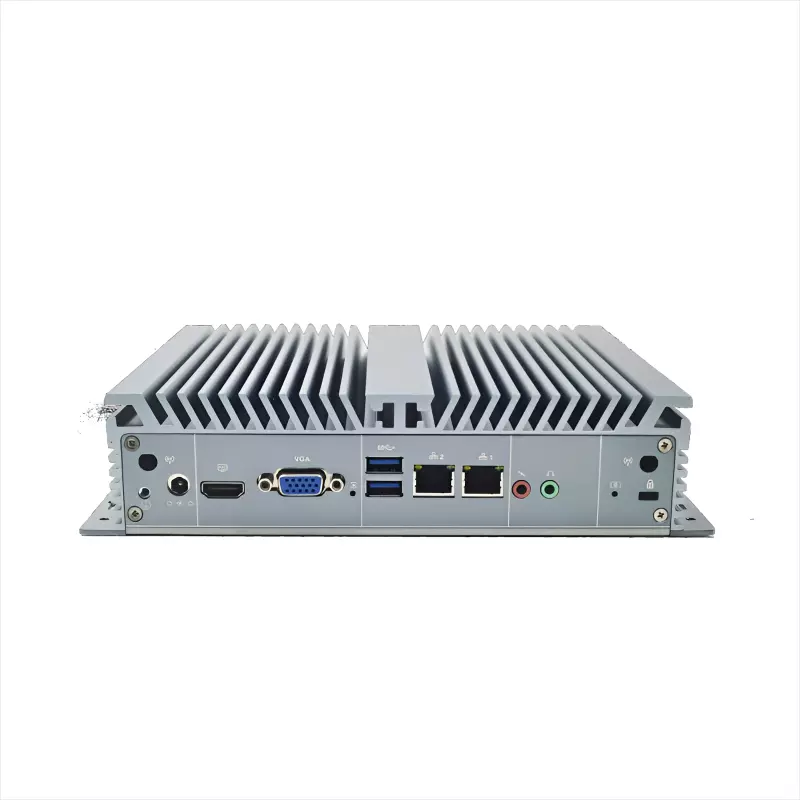

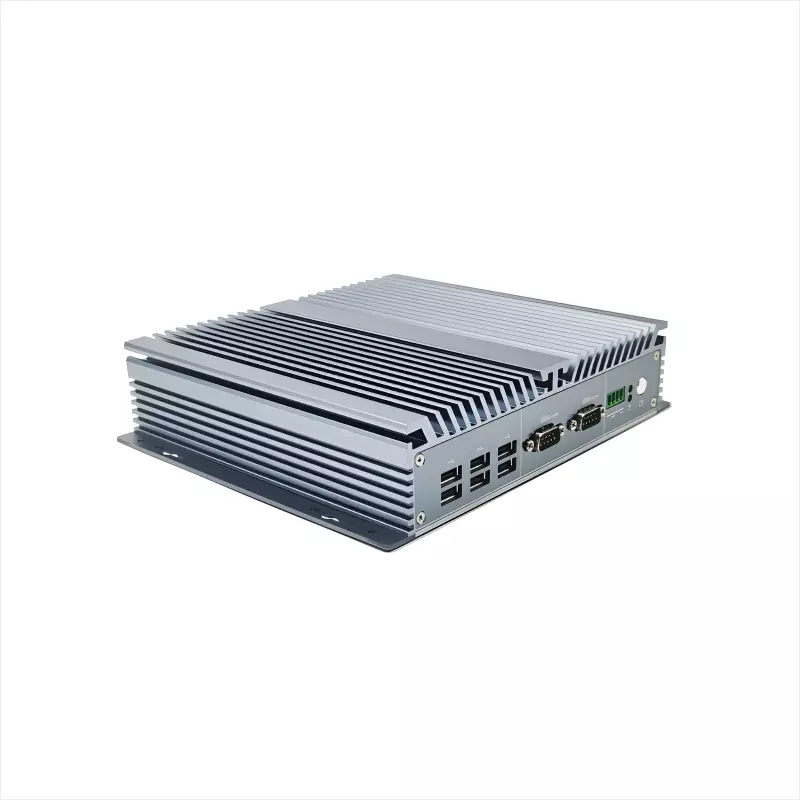

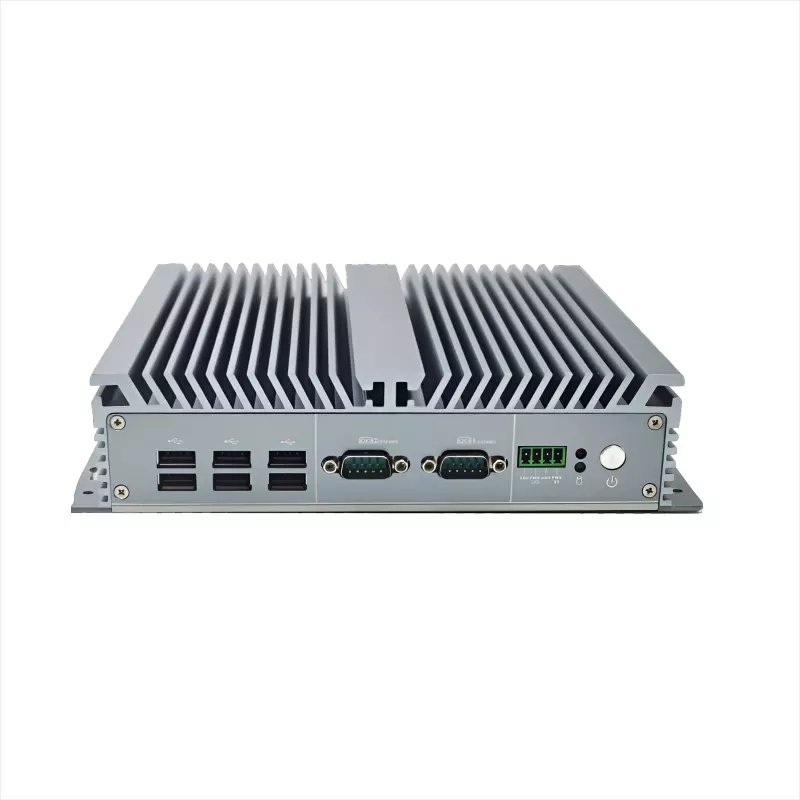

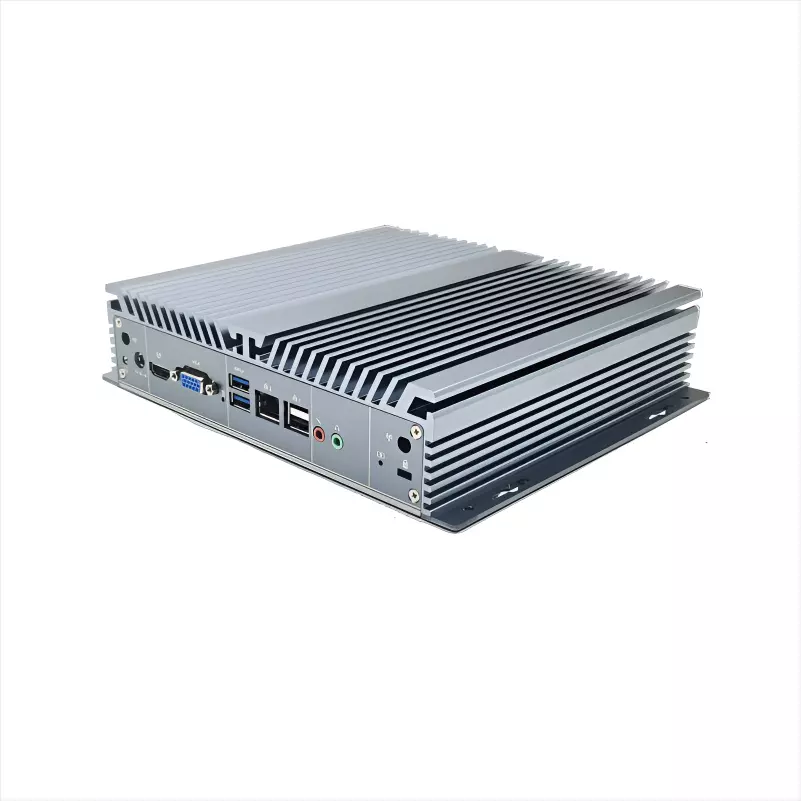

Fanless Cooling Industrial Controller

Home Products Industrial Computers

Fanless Cooling Industrial Controller

Minimum order quantity: 200 Pieces

Delivery time: 22 Day

E-mail: xwh@cnzeroone.com

Product Advantages

Functional Features： ØIntel®Skylake/Kabylake/Kabylake-RCPU Ø2*DDR4，Supportsupto16GBMax Ø1*HDMI+1*VGADoubledisplay ØM.2SSD Ø2x1000MGigabitEthernetLAN Ø6*USB2.0，2*USB3.0 ØSupportWifi6+BluetoothorWWAN+GNSS Ø2*COM（2*RS232/485） ØDCin+12V ØFanlessdesign

Products

Custom Made Solution

Self-service ordering and cashiering

pos machine

OPS

Industrial Computers

touchscreen model

screenless

Industrial Motherboards

Office Entertainment

industrial manufacturing

machine vision

Commercial Display

intelligent medical care

financial self-help

consult and display

intelligent interaction

Self-checkout system

Medical PCs

Server computer

All in one PC

Intelligent interactive machine

Latest News

Industrial vehicle mounted computer terminal, assisting efficient automation equipment

May 17th at

ZeroOne Industrial Control Computer Performance Advantages

May 7th at

Virtual Currency Calculator Goes Live

April 19th at

What Are The Characteristics Of Intelligent Electronic Guide System

June 19th at

Why Are The Hospitals Equipped With A Check -up Call System?

June 19th at

Mall Guidance System To Help Smart Merchants Informatization Construction

June 19th at

What Are The Advantages Of The Hospital Hosted Call System?

June 19th at

How To Choose A Low Cost Mini Pc?

June 19th at

Advantages Of Using Intel Face Recognition Access Control System

June 19th at

The Advantages Of Using An Embedded Industrial Panel Pc

June 19th at

The Best Products

Intelligent double-sided display screen

Intelligent statistical display window with double-sided display

Product Details

Item	Spec
Processor	Intel®Skylake/Kabylake/Kabylake-R CPU i3-6100U/i3-7100U/i3-8130U i5-6200U/i5-7300U/i5-8250U
BIOS	AMI uEFI BIOS,64Mbit SPI Flash ROM
Memory	2x SO-DIMM,DDR4 Max Support 16GB
Storage	1×M.2 M Key,Support M.22280mm SATA and NVME PCle SSD
Display	Intel®HD Integrated Graphics Double Display 1HDMI Max.4096x2304@30Hz 1VGA Max.1920×1200 @60Hz
LAN Chipset	2×RTL8111H 10/100/1000 Gigabit Ethernet
Expansion	1×Mini PCle(For Wifi 6+Bluetooth or WWAN+GNSS)
USB	2×USB3.06×USB2.0
Audio	1×LINE-OUT &MIC-IN Realtek ALC897 HD Audio Decoding Controller
COM	2×COM DB9 COM1、COM2 Support RS485/RS232 SET(Default Setting:RS232) COM1、COM2 Support Pin9+5V/+12V/RI SET
I/O Button	1×Power Button 1x Cmos;1×OS recovery(window Linux OS)
LED	1x Power LED;1×HDD LED
Display Port	1×HDMI Port;1*VGA Port
Green port	4pin for Power Button and Power LED Single
Antenna	2x antenna Mounting Hole
LAN	2x×RJ45 Port
DC	1x DC Jack
Power Requirement	DC in +12V(φ5.5/2.5mm)
Watchdog Timer	H/W Reset:1Sec.～65535Sec./Min.and1 Sec.or 1Min./Step
Dimension	194mm×228mmx51mm
oS Support	Windows 7,Windows 10,Windows 11,Linux
Operating Temp.	Standard Temperature:-10~60℃(14~140°F)with 0.5m/s air flow Extend Temperature:-20~70℃(-4~158°F)with 0.5m/s air flow
Storage Temp.	-40～75℃(-40～167°F)
Operating Humidity	40°℃ at 95%relative humidity,non-condensing
Weight	4.41bs(2Kgs)
