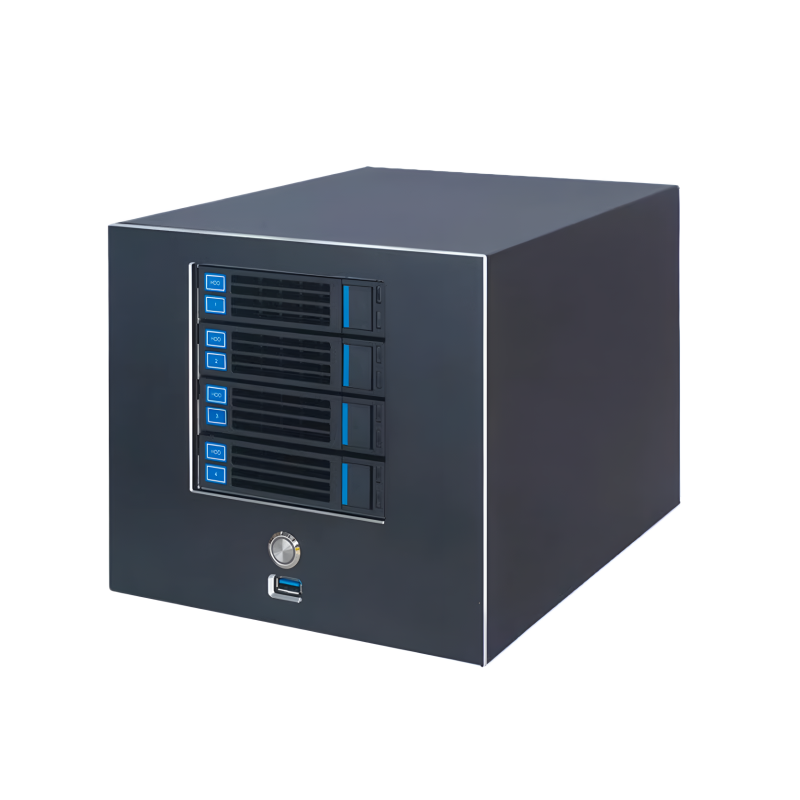

NAS Server Computer Model: LY-NASPC17

Model: LY-NASPC17

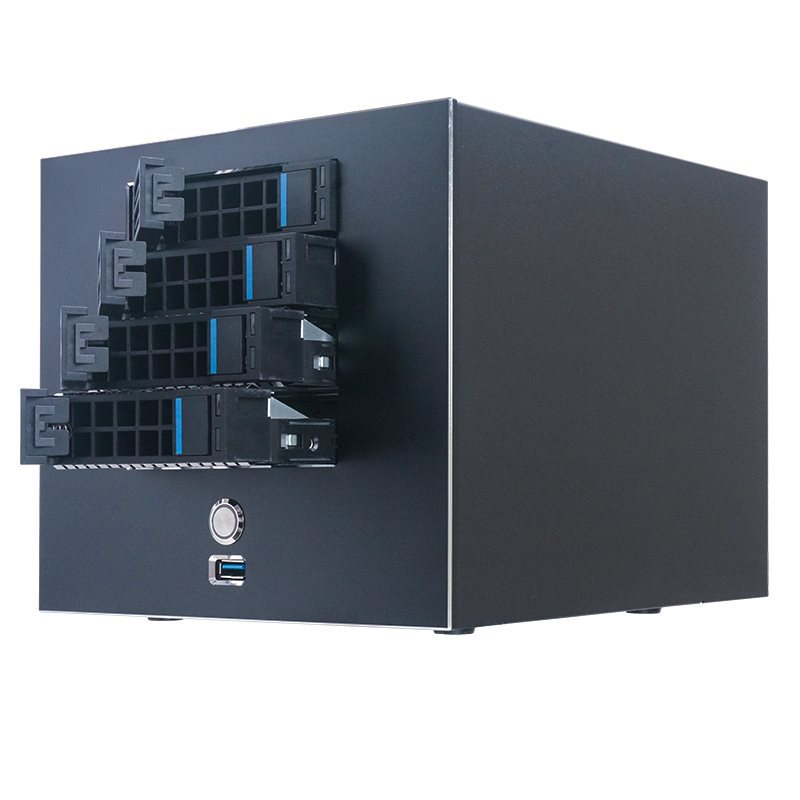

Advantages： 1. Centralized data management Provide unified storage space, support multi device file sharing, facilitate team collaboration and unified data management. 2. Strong scalability Support hot swappable hard drive expansion, which can flexibly increase storage capacity and meet the data growth needs of enterprises (such as 4U storage servers supporting multiple hard drive expansion). 3. High reliability Implementing data redundancy through RAID technology to reduce the risk of single point of failure; Some enterprise level devices support redundant power and cooling systems to ensure stability. 4. Remote access and backup Supports remote data access and automatic backup functions, suitable for distributed teams or remote office scenarios. Typical application scenarios： 1. Enterprise data storage and sharing 2. Multimedia Resource Library 3. Disaster recovery backup 4. Virtualization environment support

Tel:+86-18938679872

Inquiry

Product specifications

	Specification requirements
size	itx 170x170 mm
processor	Intel Core12 / 13 / 14 generation processor TDP65W, maximum 6 + 8 125W
terrace	Q670
show	CPU integrated graphics
internal storage	2 * DDR5 4800 SODIMM Up to 64G (180 degrees straight plug)
memory	2 * nvme M 2( PCIe GEN4x4) （ 12280+122110）
PCI-E	1 * PCIe x16 supports ten gigabit network card expansion, support PCIE x16 graphics card

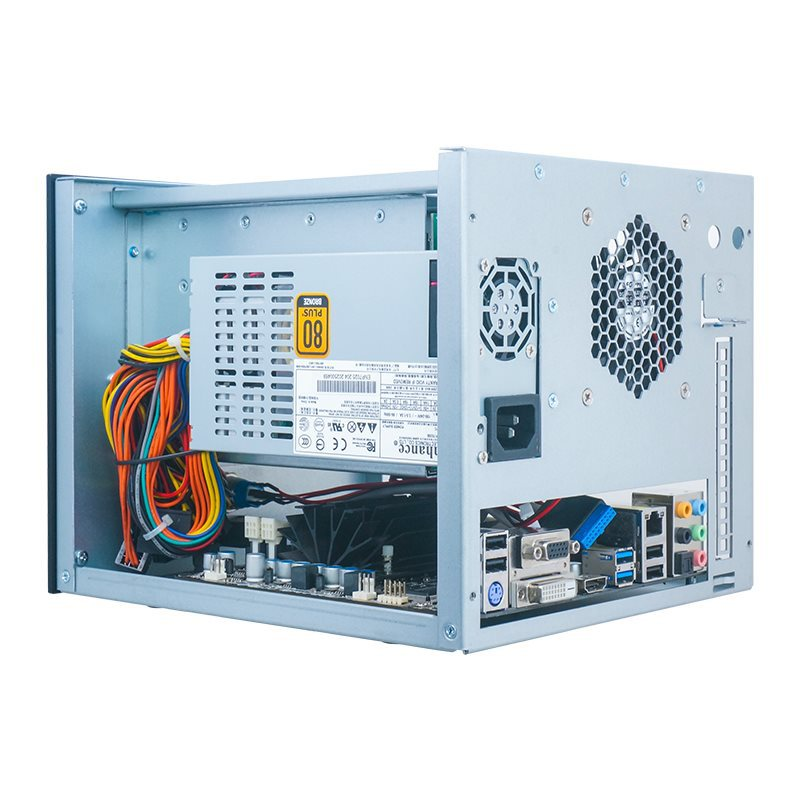

source	ATX power interface 24 + 8P
network	4 * intel I226 2. 5G ( LAN 1 Intel I266-LM supports VPro; LAN2-LAN 4 Intel
sound card	High-fidelity 2-in-1 terminal

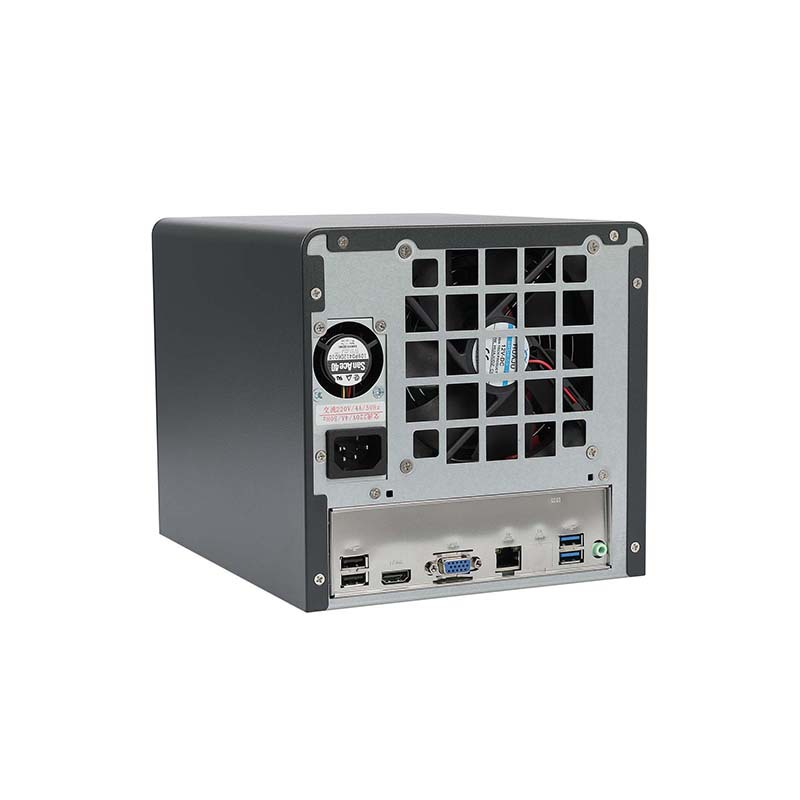

External IO interface	2* USB 3.2
	2* USB 3.2
	1* HDMI
	1*DP
	1* type-c 10 Gbps
	1 * One-click reset
	1 * 6 COM / 6 USB connector board (optional, internal USB transfer)
	1 * 8COM interface connector board (optional, internal USB transfer)
interior	1* CPU FAN(4 PIN)
	2* SYS FAN(4 PIN)
	1 * USB3.0 needle ( 19P 2.0 mm), 1 * USB3.0 seat (TYPE-A180 degrees straight)

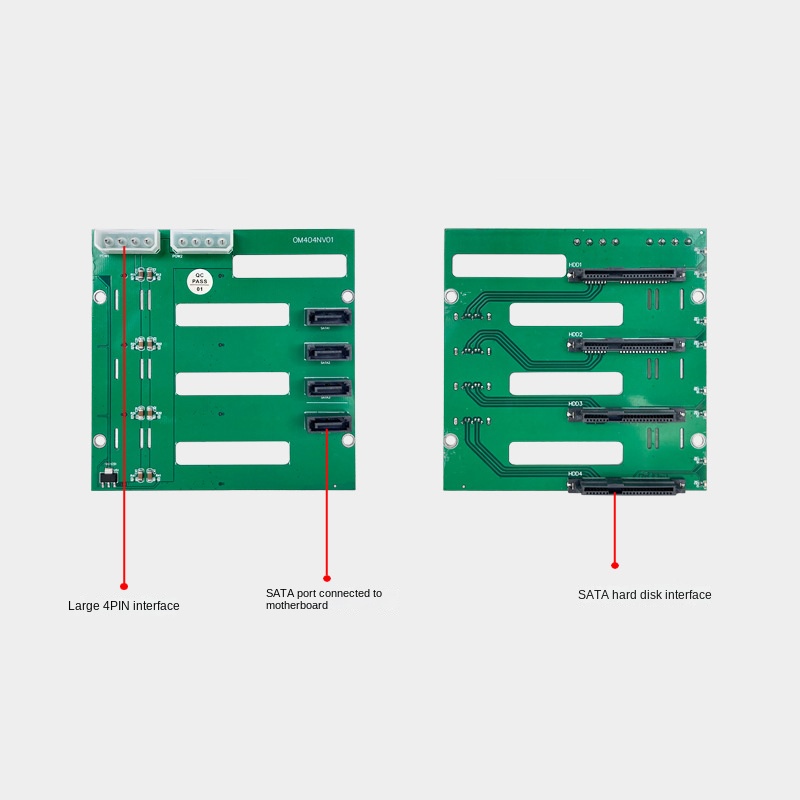

	Support for 10 * SATA 3: 2 * SATA, supporting RAID 0 / 1 1 * 8643 (optional, support 4 SATA 3) 1 8643 (optional,support PCIE 4.0 X 4)
	1 * eDP seat (optional)
	1 * Wireless Charging Power Interface (1.25-2P12V / 18W) (optional)
	8 * GPIO (injection line 2.0 2X5P, 4 * GPI + 4 GPO (5V level), 5V + GND power supply 2P)
	The 1 * TPM is compatible with the ASUS 13 PIN vertical insert
	1 * M.2 (KEYE) WIFI Interface (optional)
operating system	Linux/Windows
BIOS	Flash ROM
work environment	Temperature: 0℃ -60℃ Humidity: 10% -85% non-condensing
static electricity	Contact with 4K / air of 6K
Heat dissipation method	Fan heat dissipation, 1700 78x78mm heat sinkhole position
