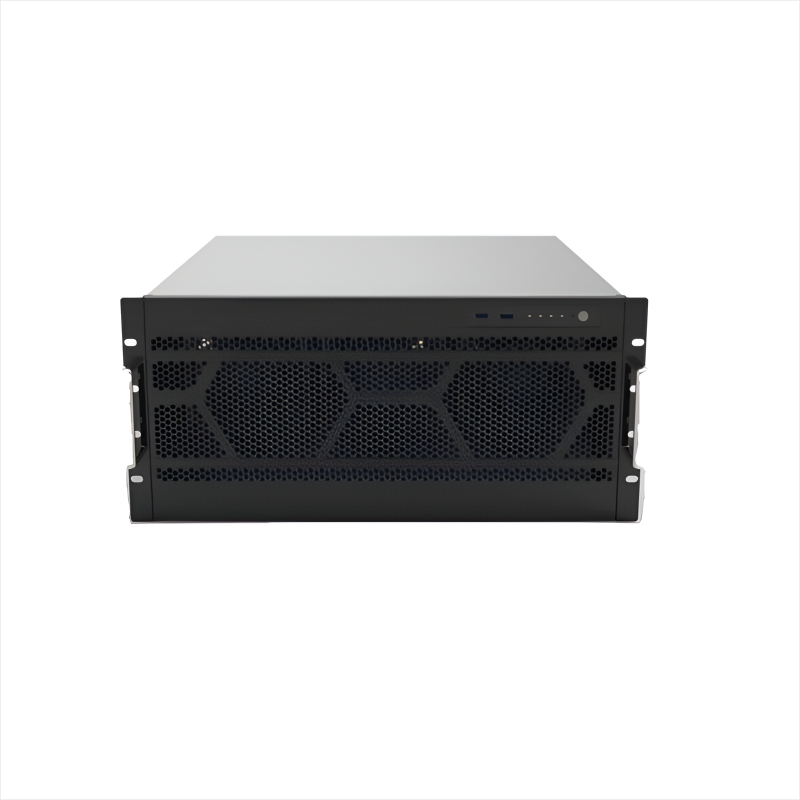

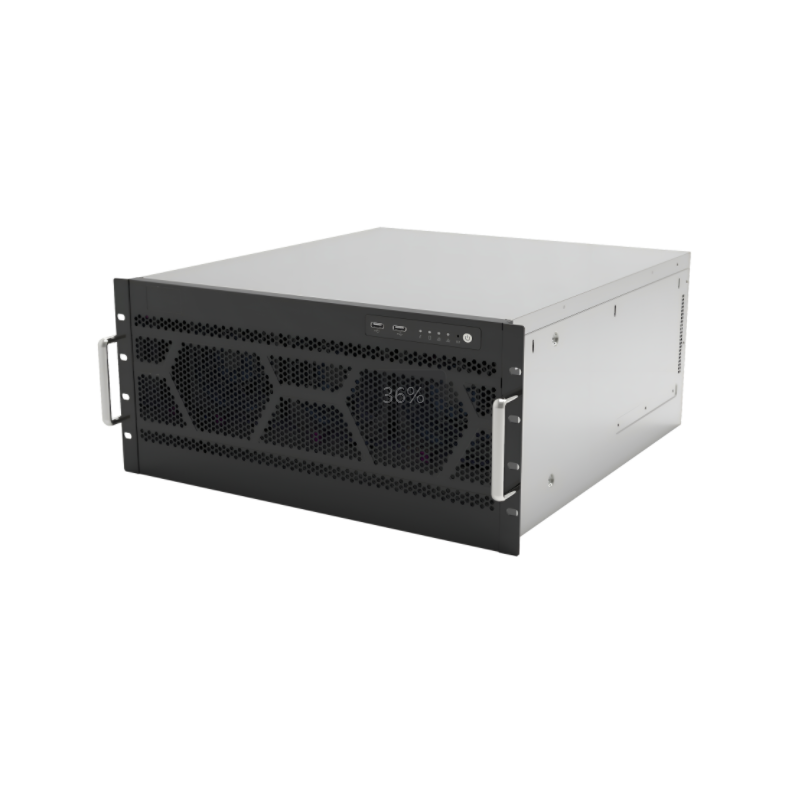

XEON Single CPU 6 Card Server Model：LY-SERDC6

Model：LY-SERDC6

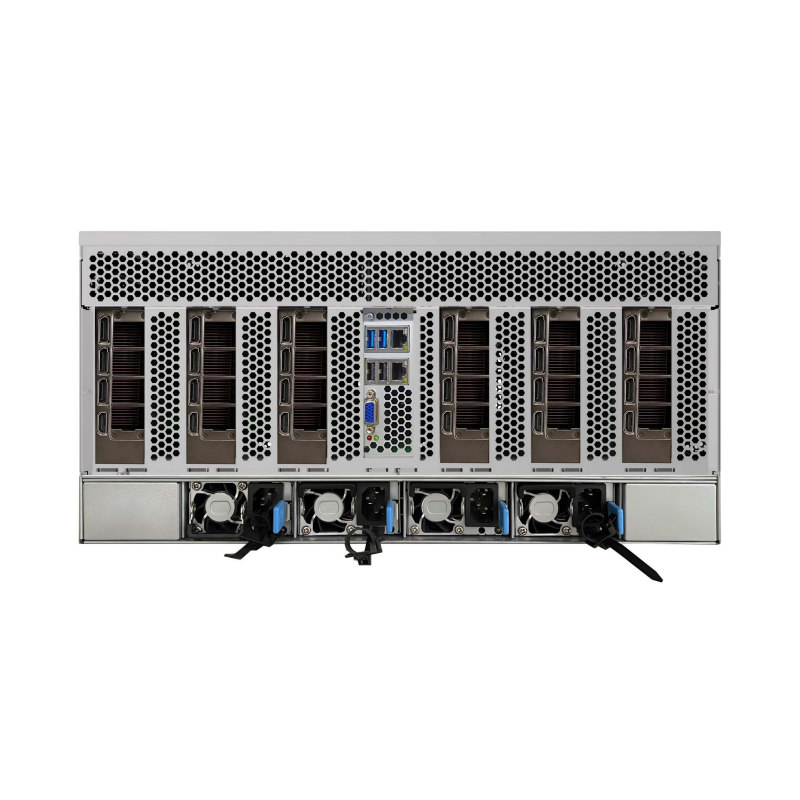

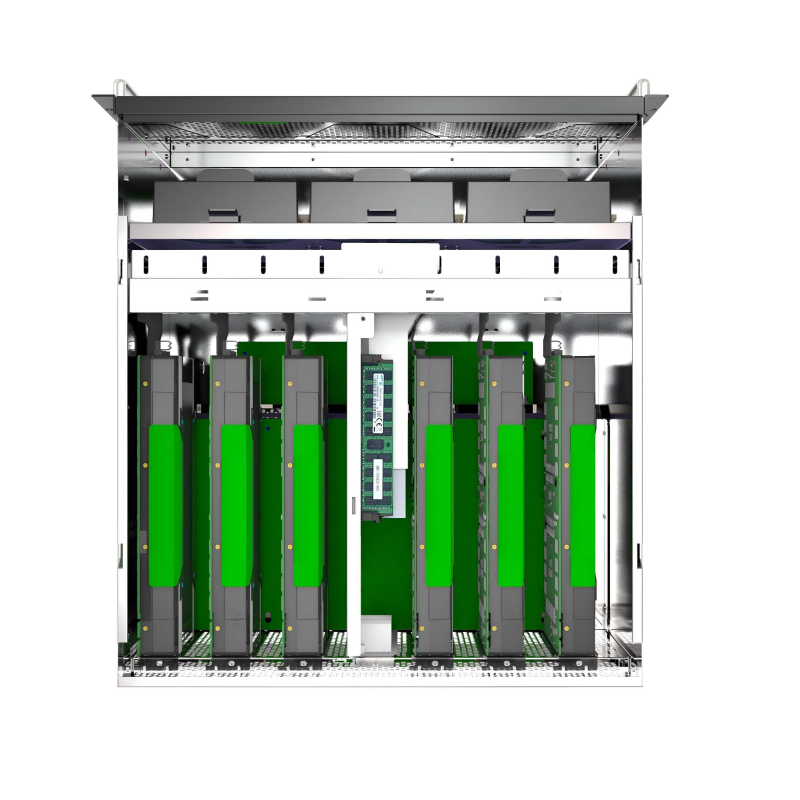

Main functions: >Intel Xeon E5-2600 v3/v4 series CPU >6 GPU cards with a width of 3 slots (PCI-E3.0 x4 per card) >4 DIMM slots, 4-channel DDR4 memory >Intel single port gigabit network card >Up to 3 1200W titanium power supplies, supporting (single/redundant) dual-mode >Integrated BMC chip, supports remote management (IPMI2.0) Low cost dedicated computing servers. It supports six 3-slot wide GPU cards, which are suitable for edge computing, blockchain, graphics rendering, game acceleration and other fields.

Tel:+86-18938679872

Inquiry

Product specifications

Classification	Technical indicators	LY-SERDC6
Chassis	Type	5U standard rack chassis
	Measurement	500mm (depth) × 447mm (width) × 218mm (height)
	Weight	About 18KG
Power supply	Rated power	Support up to 3 1200W power modules, single power and redundant modes are available
Power supply	Input	AC100-240V 60-50Hz, 80PLUS Titanium Leve
Cooling fan	Type	3 × 12038 hot-swappable fan (optional support for 2 external 12038 fans)
Equipment environment	Temperature	Working temperature: -10° to 45°C; Storage temperature: -40°to 70°C
Equipment environment	Moisture content	Working humidity: 8% to 90%; Storage humidity: 5% to 95%
