IP67 PAD Model：LY-SFPAD9

Model：LY-SFPAD9

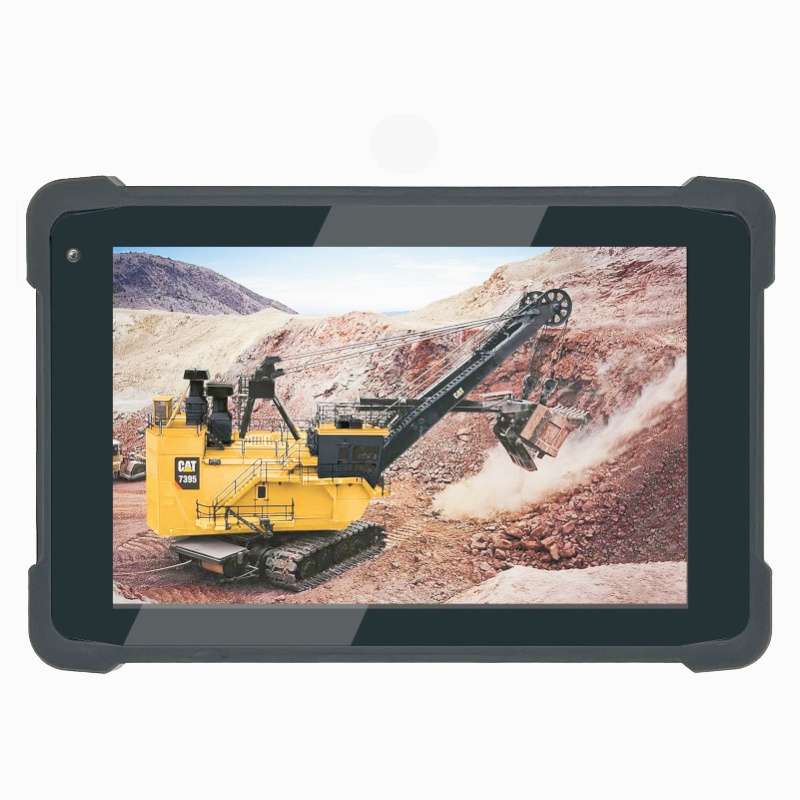

Reinforced Android Three Defense Tablet: Multi touch, resistant to high and low temperatures, dirt and dust, supports customization 【 Basic Configuration 】 Android 9.0, MSM8953, 4G, 64GB. 【 Optional accessories 】 Charging dock, back clip battery, car holder, handheld gun, ultra-high frequency handle. [Supporting interfaces] HDMI, USB, earphones Dc-IN、PJ45、 Serial port (other customizable). 【 Support customization 】 4G/5G internet module, NFC module, fingerprint capture, outdoor sunlight high brightness screen, one-dimensional/two-dimensional scanning, RFID card reader, removable WiFi/Bluetooth, Beidou/GPS/GLON/ASS high-precision positioning. Waterproof rating: Ip65. [Operating System] Window/Android optional system (Win10 or Android 9.0 or above). [Camera function] Dual front and rear cameras. 【 Application Fields 】 Industry, automotive, education, exploration, fisheries and animal husbandry, healthcare, finance, manufacturing, etc.

Tel:+86-18938679872

Inquiry

Product specifications

SPECIFICATION
CPU	MTK6762 Octa-Core A53 2.0GHz
OS	Android 9 or higher
RAM	LPDDR 4GB
ROM	EMMC 32GB
Extended Storage	Support external TF/micro SD card (up to 512GB capacity)
Display	9 inch, 800*1280, 300 nits brightness, Corning Gorilla Glass, supports multi-touch
Front Camera	5MP, FF, with light sensitivity
Rare Camera	13MP, AF, with flash
Speaker	built-in 1*1W
Communication	GSM 850/900/1800/1900 MHz)
	WCDMA B1/5/8
	LTE-FDD B1/3/5/7/8/20
	LTE-TDD 38/40/41
Wireless
	WiFi 2.4G/5G 802.11a/b/g/n/ac
	BT 5.0
Geolocation	AGPS/GPS/Glonass/BEIDOU
Card Slot	SIM （Standard/Mini-SIM ）Slot×1
	TF/Micro SD Slot×1

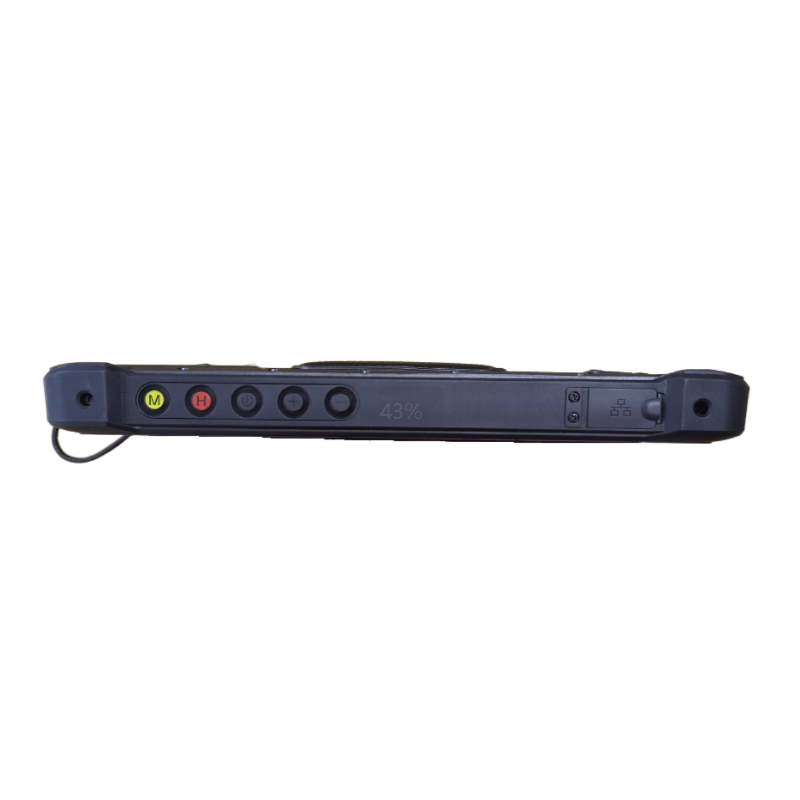

Button	1Power/Lock， 1 Volume+， 1Volume-,2Functional Button

Interface	USB 3.0 Type-A ×1
	USB 3.0 Type-C ×1 OTG/Charging
	3.5mm Audio ×1
Battery	5pin Pogo pin ×1
Dimension	Li-On rechargeable 4.4V 8000mAh；
Weight	250х170х28mm
Adapter	App. 705g
Protection	Input：AC 110-240V 50/60Hz, Output: DC 5V 3A， European Gauge
Enviroment	IP65； 1.2M Drop
	USE： -20℃~50℃, 10%~90% RH
	STORE： -30℃~70℃, 5%~95% RH
Accessory	Stylus
Equipment List	Terminal ×1；Adapter×1； USB Cable 1M ×1
