K-type base advertising machine
  • K-type base advertising machine
  • K-type base advertising machine
  • K-type base advertising machine
  • K-type base advertising machine

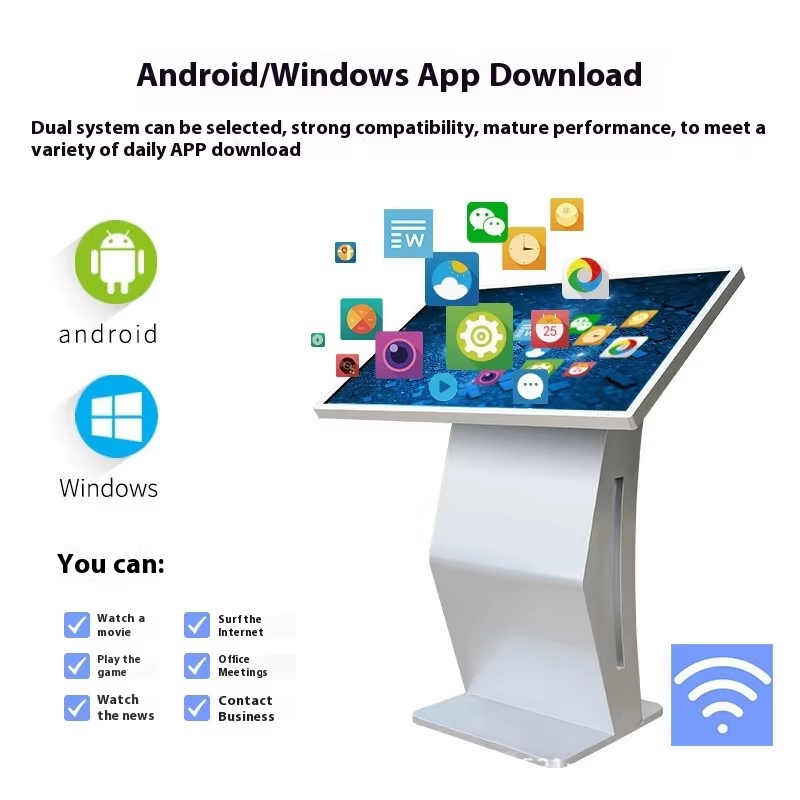

K-type base advertising machine  Model:LY-KXGGJ-55

  • Model:LY-KXGGJ-55
Core applications 1、 Financial scenario (high interaction demand) >Bank branch self-service Product display and business processing: The K-type multi touch screen supports customers to self-service query financial product details, real-time exchange rates, and view contract terms text through gesture zooming, reducing counter pressure. Risk education: Play dynamic financial fraud case videos and combine touch screen simulation operations to strengthen customer risk awareness >Securities/Insurance Institutions Used for visualizing the yield curve model, customers can rotate their fingers to view the three-dimensional data graph of the investment portfolio 2. Commercial Space (Immersive Experience) >Intelligent shopping guide in shopping malls Deploy in the brand counter area, touch check product inventory, match suggestions, and promotional activities, support gesture sliding to switch products for 360 ° display Luxury stores use 4K resolution models (such as 75 inches) to present material details and textures in high definition >Digital upgrade of catering industry K-type machine is installed at the entrance of the chain restaurant: it plays 3D animations of dishes in a scrolling manner, and generates a pickup code directly after touch ordering Coffee shop with membership system: Customers scan the code on the touch screen to receive coupons 1314 3、 Public Service (Efficient Information Communication) >Intelligent triage in hospitals Dual screen collaboration of K-type machines in the waiting area: health education animations are played on the external screen, and department navigation and expert scheduling are queried through touch control on the internal screen Pharmacy dispensing guide: After scanning the prescription, the patient will see the dynamic position of the dispensing window displayed >Transportation hub services Airport check-in island: Touch to check flight status+baggage check-in rules, supports gesture zooming in and out of the te

Tel:+86-18938679872

Inquiry
  • Product specifications

    Liquid Crystal Parameters    Display and Brand55” LED (BOE)
    Display Ratio16:09
    Display Area1209*680
    Resolution1920*1080
    Dot Distance0.210×0.630 mm
    Horizontal Frequency30 - 80KHZ
    Vertical Frequency60/75HZ
    Number of colors167,700 true colors
    Lamp Life50000 hours
    Average Brightness350cd/m 2
    Contrast1400:01
    Viewing AngleUp and down 178° left and right 178°
    Input VoltageAC 110-220V(50HZ-60HZ)
    Power ManagementVESA DPMS compliant
    Power Consumption≤180W
    Operating Temperature0- 40 ℃
    Storage Temperature-10-50
    I/O interfaceUSB Interface4-way USB2.0 (2 USB HOST, 2 USB socket)
    Audio/Video OutputLeft and right channel outputs, built-in dual 4R/20W, 8R/10W amplifiers
    LAN Network Interface1 way RJ45
    power supplySupply VoltageDC12V/AC100-240V 50/60Hz (External)
    Standby Power (Energy Star)1W
    Touch ParametersTouch Frame BrandCVT
    Sensing TechnologyInfrared tube sensing, the number of tube pairs not less than 300 pairs
    Number of Touch PointsIR 10 points
    Sensing ObjectsFinger, pen and any other opaque objects
    Touch Accuracy<1.5mm (center area) <2.0mm (edge area)
    Resolution32767 X 32767
    Response timeSingle Point Mode:First Point (Click):8ms ,Continuous (Writing):3ms Multi-Point Mode:First Point (Click):8ms ,Continuous (Writing):8ms Mouse:First Point (Click):8ms ,Continuous (Writing):8ms
    Cursor speedSingle point: up to 300 points/second Multi point, mouse: 125 points/second
    LifespanGreater than 60,000,000 clicks
    Screen protection glass3mm optical glass, tempered
    Touch screen power supplyUSB power supply (4.6-5 volts, DC)
    Power ConsumptionLess than or equal to 1W
    Compatible SystemsCompatible with WIN7,WIN8 2-point operation and writing, support WIN7 gesture recognition
    PositioningCompliance with HID device standards, no need to locate, while supporting the management program to locate the correct. Optional 4-point or 5-point positioning
    Anti-Light Failure FunctionAnti-light degradation circuit, effectively prevent performance degradation due to long working hours.
    Power supplyMAGAMIT integrated power supply
    Wireless keyboard and mouseOption
    Storage Humidity5%~95
