Home  >  Product&Solutions  >  10.4-inch touch industrial computer
10.4-inch touch industrial computer
  • 10.4-inch touch industrial computer
  • 10.4-inch touch industrial computer
  • 10.4-inch touch industrial computer
  • 10.4-inch touch industrial computer
  • 10.4-inch touch industrial computer
  • 10.4-inch touch industrial computer

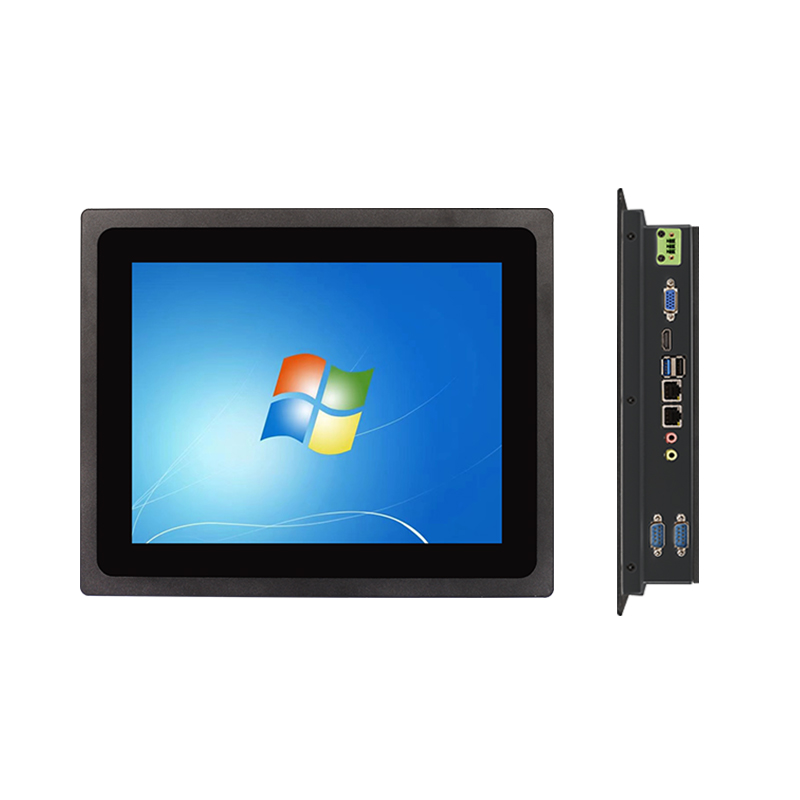

10.4-inch touch industrial computer  Model: LY-TPCIT104

  • Model: LY-TPCIT104
1、 Industrial Automation and Intelligent Manufacturing Factory assembly line control: As an HMI human-machine interface embedded device, PLC communication and equipment monitoring are achieved through dual network ports, and the aluminum magnesium alloy body is resistant to vibration interference. Machine vision quality inspection: supports Halcon and other visual algorithm libraries to perform product appearance defect detection (such as electronic component missing parts, solder joint virtual soldering). Chemical production monitoring: fanless sealing design to prevent the invasion of corrosive gases, strong anti electromagnetic interference characteristics to ensure accurate collection of reaction process data. 2、 Transportation and Logistics AGV/AMR navigation control: integrates LiDAR and SLAM positioning technology to achieve dynamic path planning and centimeter level positioning for warehouse logistics vehicles. Vehicle dispatch terminal: Designed with a wide temperature range (-40 ℃~80 ℃) to adapt to high temperature environments of vehicles, the seismic resistant structure ensures stable operation during transportation. 3、 Medical and health field Medical imaging equipment control: Drive the CT/MRI equipment operation interface, optimize the medical environment with zero noise characteristics, and extend the lifespan of optical components with dust-proof design. Intensive care system: Real time monitoring of vital signs, seismic response to bed movement and vibration, ensuring uninterrupted data transmission. 4、 Energy and Power Monitoring Substation monitoring terminal: collect ammeter data through multiple RS-485 interfaces, and support edge computing to analyze power consumption abnormalities. Power inspection equipment: IP65 protection level suitable for outdoor environments, aluminum body resistant to salt spray corrosion. 5、 Public facilities and commercial services Self service terminal: applied to bank ATMs and ticket machines, with ca

Tel:+86-18938679872

Inquiry
  • Parameters

    Medical AiO Touch Panel PC

    This medical AiO touch panel pc is highly customized focused on healthcare. The engineered durable for any clinical applications, powered with sensitive PCAP touch screen, fanless design making it perfect fit for healthcare.
    Multiple sizes from 10.1 to 21.5 inch available with different Gen Intel processor.
    This medical pc designed with fanless cooling, using low power consumption, gives the AiO touch PC longer lifespan and operates 24/7 without much noisy so that not cause a disruption to the environment.
    IP65 rated front prevent dust and liquid directly sprayed on the computer.

    ModelLY-IPC104
    Display10.4
    TouchCapacitive
    Resolution1024*768
    Brightness300cd/m2
    BiosAMI  BIOS
    CPUBaytrailGemini LakeElkhart LakeSky Lake(6-7)Whiskey Lake(8-10)
    ChipsIntel® SOC
    GPUIntel® HD GraphicsIntel® UHD Graphics Intel® UHD GraphicsIntel® HD Graphics Intel® UHD Graphics
    InternetRealtek RTL8106ERLT8111H/8111GRLT8111H/8111GRLT8111H/8111GRLT8111H/8111G
    AudioRealtek ALC662HDRealtek ALC269HDHS-100BHS-100BHS-100B
    RAMDDR3L 1333MHzDDR4 2133/2400MHzDDR4 3200MHzDDR4 2133 MHzDDR4 2666 MHz
    SSDM-SATAM-SATAM.2 2280 NVMEM.2 2280 NVMEM.2 2280 NVME
    FunctionSupport WiFi、BT、4G etc.
    UP I/O1*Power Button(LED)1*Power Button(LED)1*Power Button(LED)1*Power Button(LED)1*Power Button(LED)
    2*Antennar2*Antennar2*Antennar2*Antennar2*Antennar
    2*USB/2*COM(Reserve)2*USB/2*COM(Reserve)2*USB/2*COM(Reserve)2*USB/2*COM(Reserve)2*USB/2*COM(Reserve)
    Bottom I/O1*Audio1*Audio1*Audio1*Audio1*Audio
    1*LAN1*VGA1*VGA1*LAN1*VGA
    3*USB2.01*HDMI1*HDMI2*USB3.01*HDMI
    1*USB3.02*USB2.02*USB2.01*HDMI4*USB3.2 Gen 2
    1*HDMI2*USB3.02*USB3.2 Gen 11*VGA1*LAN
    1*VGA1*LAN1*LAN1*DC IN1*DC IN
    1*DC IN1*DC IN1*DC IN2*COM2*COM
    2*COM2*COM2*COM1*M3 Ground1*M3 Ground
    1*M3 Ground1*M3 Ground1*M3 Ground2*USB 2.01*CMOS






    PowerDC  12VDC  12VDC  12VDC  12VDC  12V
    Speaker2* 4Ω 3W

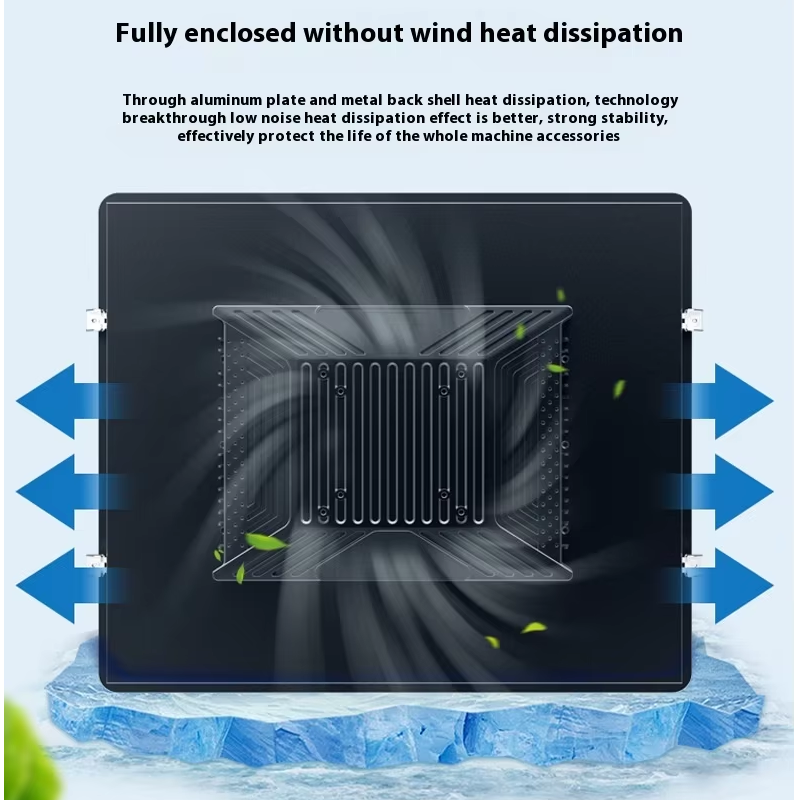

    Heat SinkFanless
    Power Consumption<15W
    InstallEmbedded, Mounting, Table

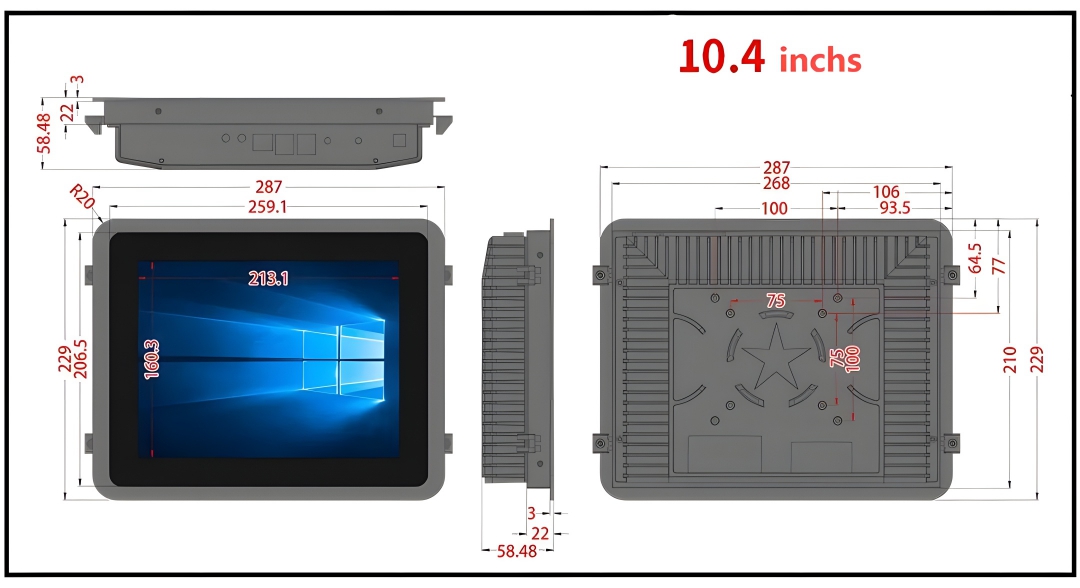

    Dimension293x220x59mm
    Weight<2.6kg
    ColorBlack

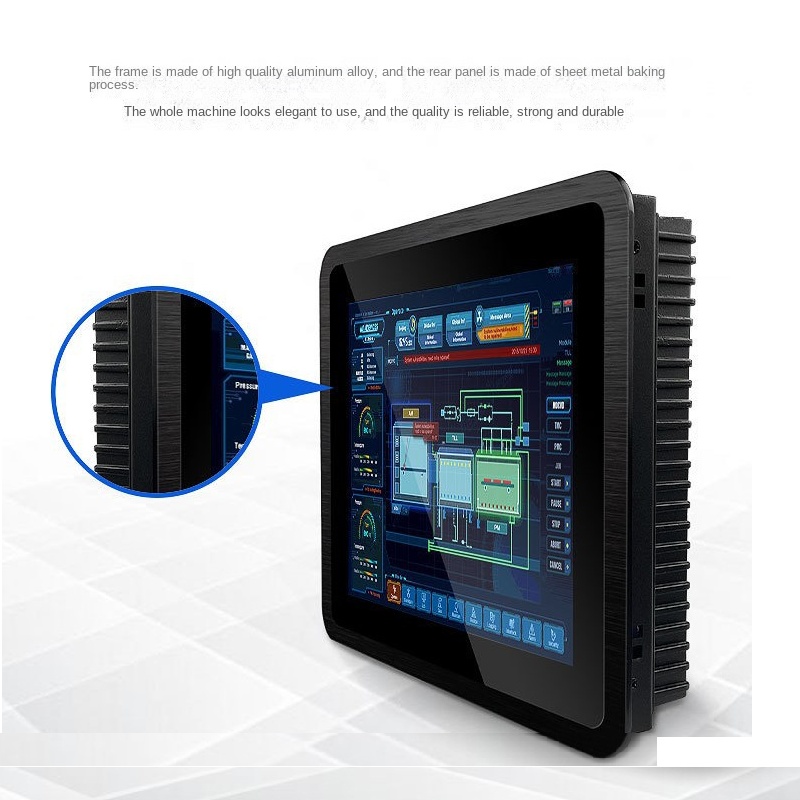

    MaterialAluminium Alloy
    OSWindows 7 /Windows 10/Linux
