Project Category Content

Processor：Support Intel® 8th/9th Coffee lake-H &Coffee lake-H refresh processor BGA1440 4C/8T or 6C/12T vProTM 45w/(35w cTDP)

Chipset：Intel® HM370/HM375

BIOS： AMI 128Mbit, support write-protect, diskless boot, Wake-on-Network, power-on, timer boot, watchdog remote switching device intelligent recognition and other related features.

Storage：Interfaces

1 x SATA Interface (for 2.5” hard disk) SATA3.0

1 x M.2 M Key (NGFF SATA3.0), supports M.2 2280mm SATA & PCIe SSDs

IO-side Display

Intel® UHD Graphics integrated graphics

HDMI: Display resolution up to 4096x2304@30Hz DP: Display resolution up to 4096x2304@60Hz

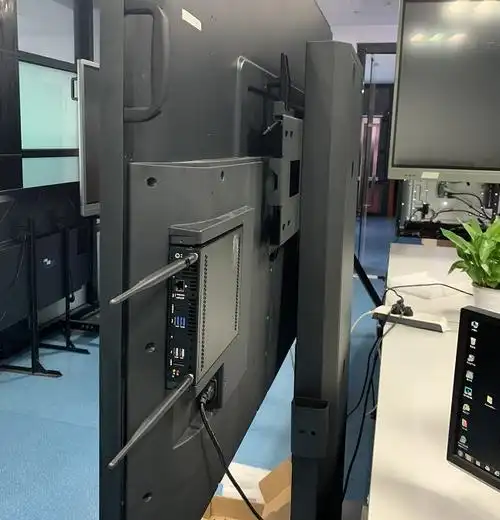

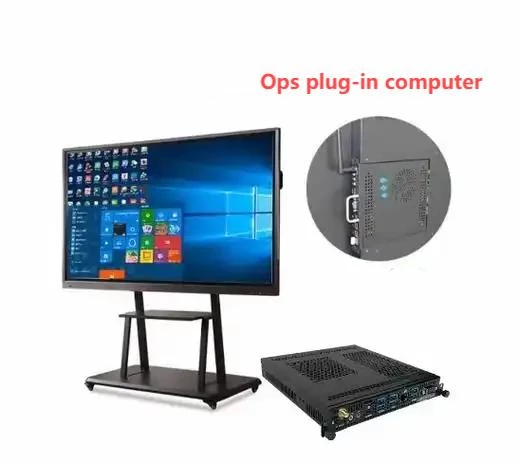

OPS side display

HDMI2.0 display resolution up to 4096x2304@60Hz

Networking

Wired：1 x RTL8111H 10/100/1000M (onboard RJ45)

Wireless：1 x M.2 A Key (For WIFI+Bluetooth Card)

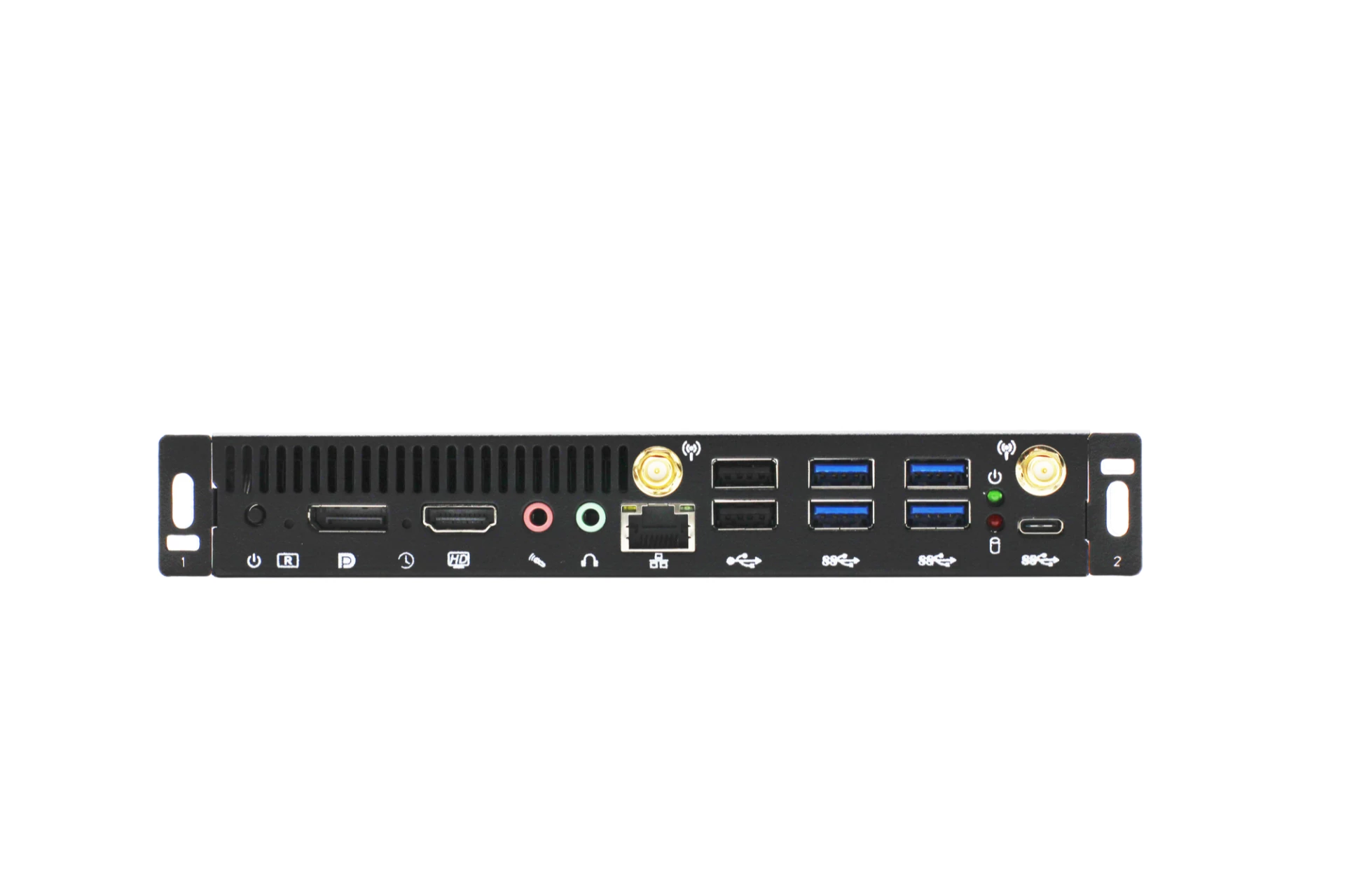

I/O：USB

4 x USB3.1 2x USB2.0

1 x Type-C USB3.1

LAN：1 x RJ45

Socket：1 x DC Power Socket 1 x OPS80pin

LED：1 x POWER LED 1 x HDD LED

Button：1 x Power Button

1 x RESET (short press to reboot, long press to CLR-CMOS)

1 x Ghost Button (System One Click Restore)

Input:DC 12~19V

Watchdog

Function

Downtime restart system

Interval

1 ~ 65535sec

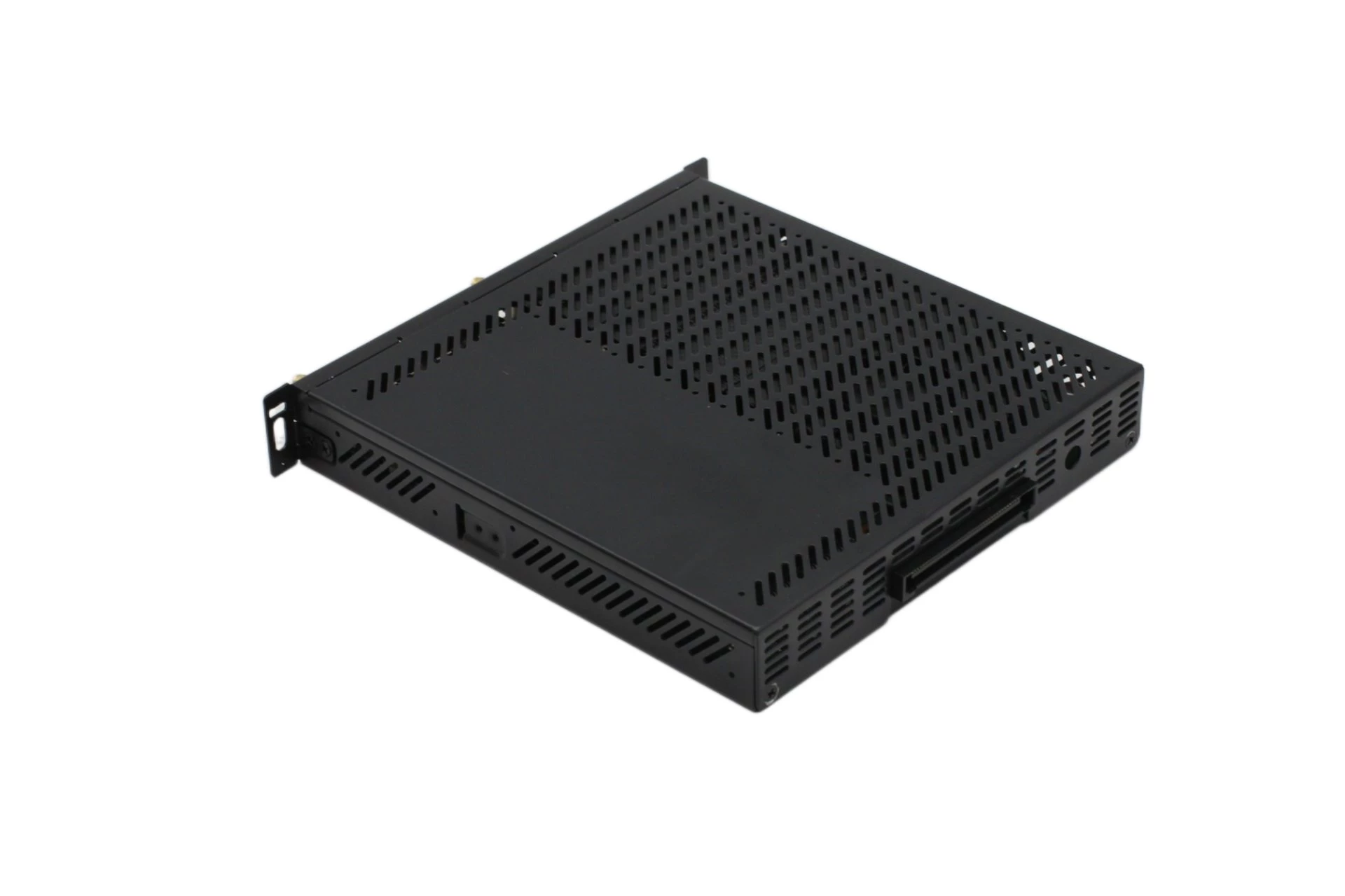

Dimension: 180 (L) x 195 (W) x 30(H)mm

Operating System

Version

windows10 / Linux

Working Environment

Temp.:Operating Temperature: 0°C ~ 60°C Storage Temperature: -20~70°C
