Fanless Cooling Industrial Controller

Home Products Industrial Computers

Fanless Cooling Industrial Controller

Minimum order quantity: 200 Pieces

Delivery time: 22 Day

E-mail: xwh@cnzeroone.com

Product Advantages

Functional Features： ØIntel®Skylake/Kabylake/Kabylake-RCPU Ø2*DDR4，Supportsupto16GBMax Ø1*HDMI+1*VGADoubledisplay ØM.2SSD Ø2x1000MGigabitEthernetLAN Ø6*USB2.0，2*USB3.0 ØSupportWifi6+BluetoothorWWAN+GNSS Ø2*COM（2*RS232/485） ØDCin+12V ØFanlessdesign

Products

Custom Made Solution

Self-service ordering and cashiering

pos machine

OPS

Industrial Computers

touchscreen model

screenless

Industrial Motherboards

Office Entertainment

industrial manufacturing

machine vision

Commercial Display

intelligent medical care

financial self-help

consult and display

intelligent interaction

Self-checkout system

Medical PCs

Server computer

All in one PC

Latest News

Virtual Currency Calculator Goes Live

November 19th at

What Are The Characteristics Of Intelligent Electronic Guide System

June 19th at

Why Are The Hospitals Equipped With A Check -up Call System?

June 19th at

Mall Guidance System To Help Smart Merchants Informatization Construction

June 19th at

The Best Products

Super Slim Hanging Ceiling Mounted Double Sided Dual Screen Advertising Shop Window Display Advertising LCD Display Dual Screen

34 inch curved all-in-one computer

Product Details

Processor：Intel®CORE 6TH/7TH/8TH CPUi3/i5/i7

BIOS: AMI uEFI BIOS, 64Mbit SPI Flash ROM

Memory: 2x SO-DIMM，DDR4 Max Support 16GB

Storage: 1 x M.2 M Key，Support M.2 2280mm SATA and NVME PCIe SSD

Display: Intel® HD Integrated Graphics Double Display

1*HDMI Max. 4096x2304@30Hz

1*VGA Max. 1920 x 1200 @ 60Hz

LAN Chipset:2 x RTL8111H 10/100/1000 Gigabit Ethernet

Expansion:1 x Mini PCIe（For Wifi 6+Bluetooth or WWAN+GNSS ）

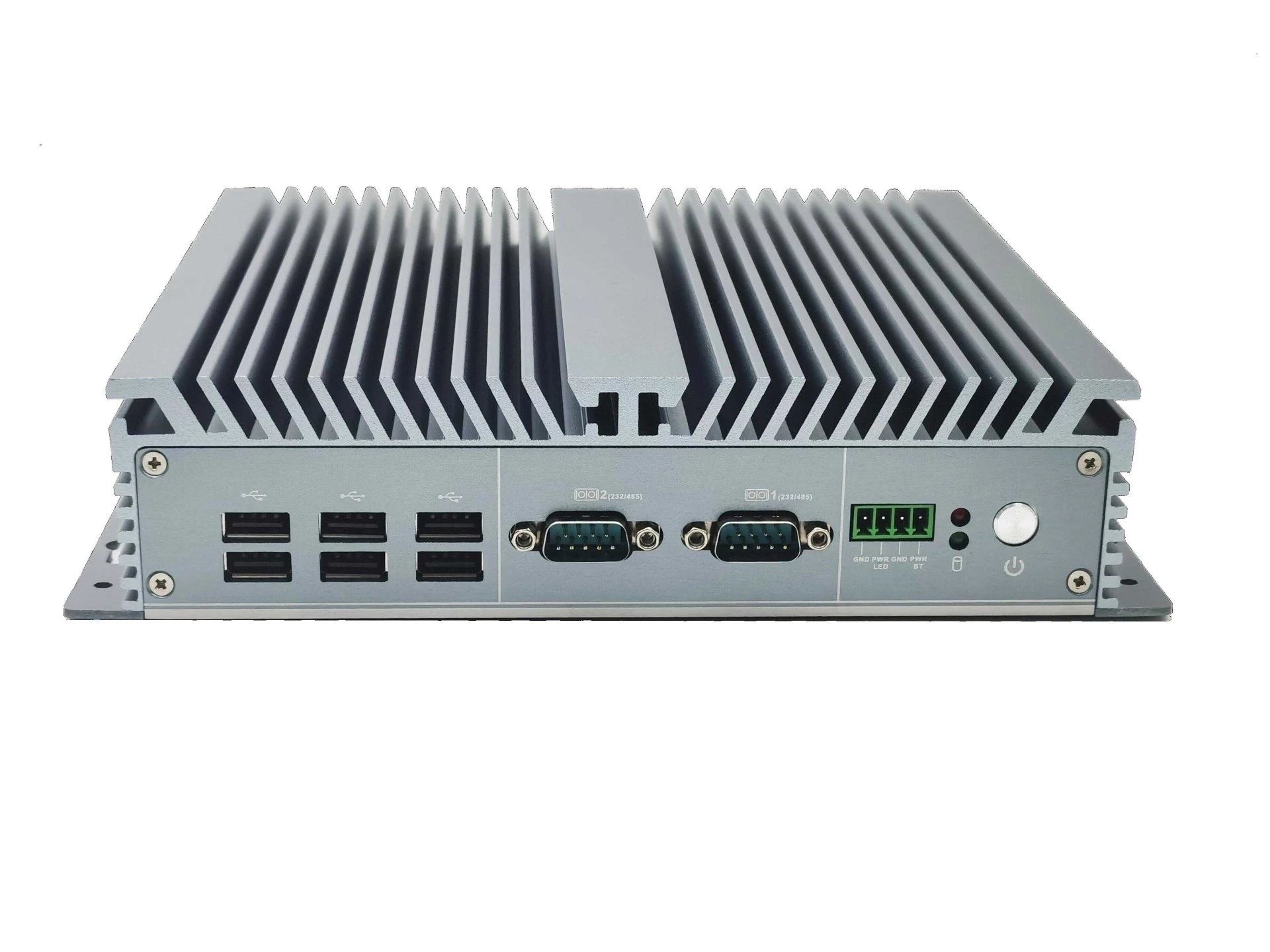

I/O

USB: 2 x USB3.0 6 x USB2.0

Audio: 1 x LINE-OUT &MIC-IN

Realtek ALC897 HD Audio Decoding Controller

COM: 2 x COM DB9

COM1、COM2 Support RS485/RS232 SET(Default Setting: RS232)

COM1、COM2 Support Pin9 +5V/+12V/RI SET

Button: 1 x Power Button

1 x Cmos ；1 x OS_recovery （window Linux OS）

LED: 1 x Power LED； 1 x HDD LED

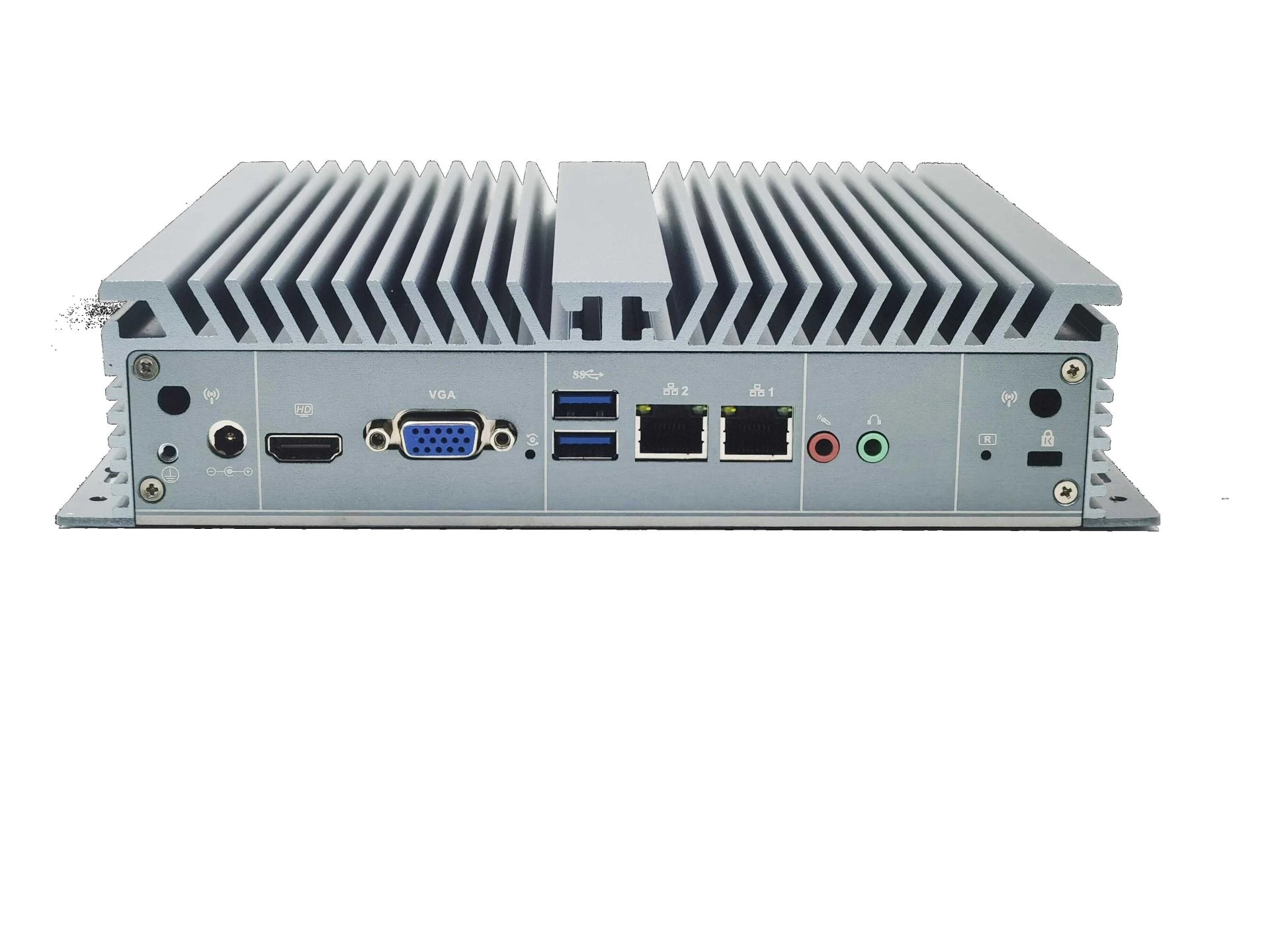

Display Port: 1 x HDMI Port ；1*VGA Port

Green port: 4pin for Power Button and Power LED Single

Antenna: 2 x antenna Mounting Hole

LAN: 2 x RJ45 Port

DC: 1 x DC Jack

PowerRequirement: DC in +12V（φ5.5/2.5mm)

Watchdog Timer: H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

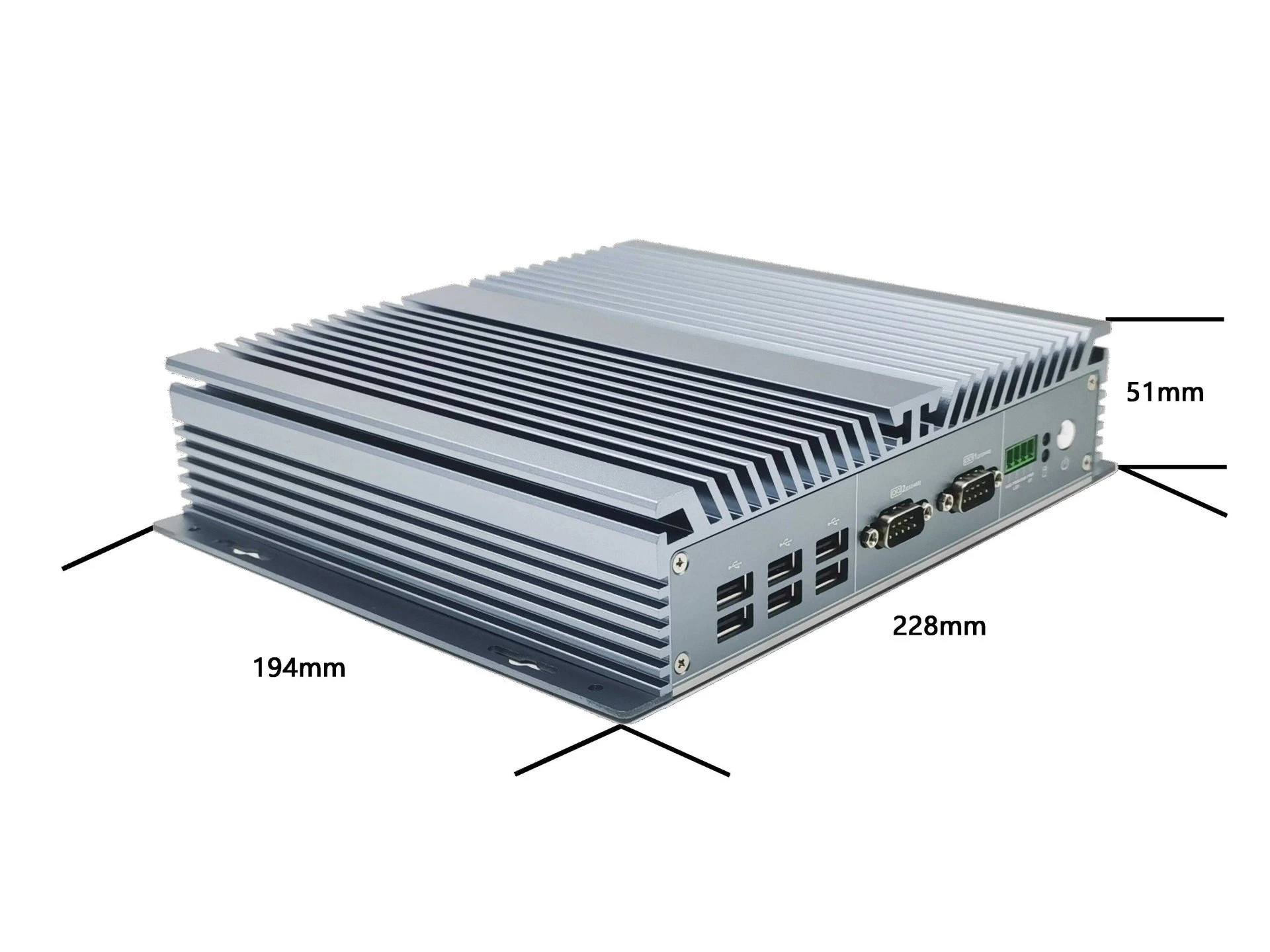

Dimension: 194mm x 228mm x 51mm

OS Support: Windows 7, Windows 10, Windows 11, Linux

Operating Temp: Standard Temperature: -10~60°C (14~140°F) with 0.5m/s air flow

Extend Temperature: -20~70°C (-4~158°F) with 0.5m/s air flow

Storage Temp: -40 ~ 75°C (-40 ~ 167°F)

Operating Humidity: 40°C at 95% relative humidity, non-condensing

Weight: 4.4lbs (2Kgs)
