Processor
Intel® 12th/13th Alder lake/Raptor Lake Processor (Support U/P/H series)
Intel® Core™ 1280P/1250P/1220P/1215U/12450H, etc.
Chipset
Intel® SOC
Display Chipset
Intel® UHD Graphics
Display Output
U series CPU supports LVDS/EDP + 2*HDMI + DP1 any 4 displays; P/H series CPU supports LVDS/EDP + 2*HDMI + 2*DP any 4 displays.
Multi-Display Support
4-Display Simultaneous Asynchronous
USB
Support 3*USB3.2 Gen2 (10Gbps) + 6*USB2.0
Memory
2*SO-DIMM DDR4 3200MHz Max64GB
Audio
Onboard ALC897 audio decoding controller; Independent amplifier NS4251 3W@4Ω MAX
Network Card
Onboard Intel i219-V+ i210AT Gigabit LAN card (Single/Dual LAN selectable)
Memory
1*M.2 M Key, support SATA3/PCIEx4 adaptive; 1*SATA3.0 interface
Expansion Slot
1*M.2 E Key, support Wifi6/Bluetooth module expansion; 1*M.2 B Key, support 4G module expansion (5G function optional); 1*PCIEX4 expansion slot

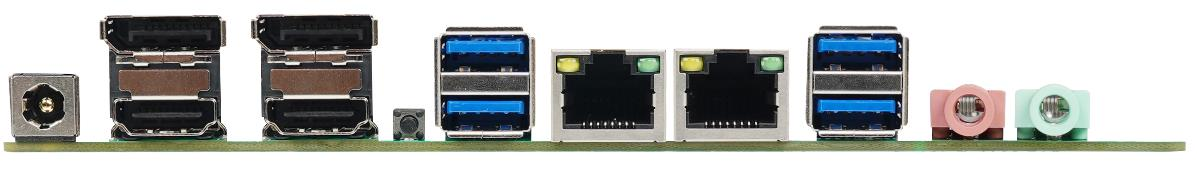

Rear I/O Interface
1*DC_IN port
2* HDMI+2*DP (Upper DP and lower HDMI dual-layer mount)
1*REC button (support system restore/clear CMOS)
2*USB3.2 port (Gen2 10Gbps)
1*LAN2 port (Optional 2*USB2.0)
1*LAN1 port
1*USB2.0+1*USB3.2
1*R_MIC
1*R_OUT
Internal I/O pins
1*F_AUDIO pin
1*Speaker pin
3*USB pins (expandable)
5*USB2.0)
1*LVDS/EDP pin
1*INVCN pin
1*GPIO pin (4-way)
1*LPT pin
1*SATA pin
1*SATA_PWR pin
6*COM pin
1*TPM pin
1*JPS2 pin
1*F_PANEL pin
1*SYS_FAN pin
1*CPU_FAN pin
1*4pin ATX socket
Dimension
170 x 170 mm
I/O Chip
IT8786E
System
Window10/11; Linux
BIOS
AMI BIOS
Environment
Operating: 0~60°C; Storage: -20°C~75°C
0% ~ 95% relative humidity, non-condensing
Power Supply
DC/4Pin ATX 12V~19V Wide Voltage Supply
