Main board of each display device

Minimum order quantity: 200 Pieces

Delivery time: 15 Day

E-mail: xwh@cnzeroone.com

Product Advantages

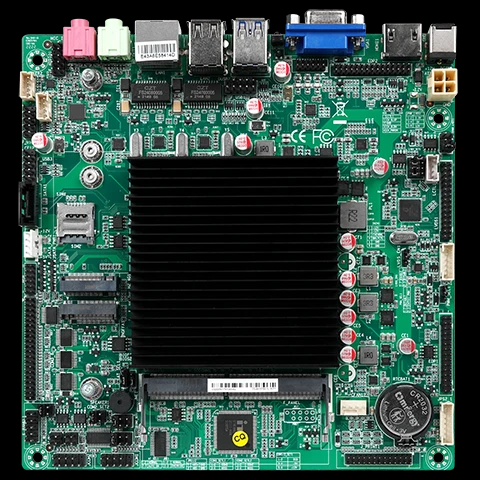

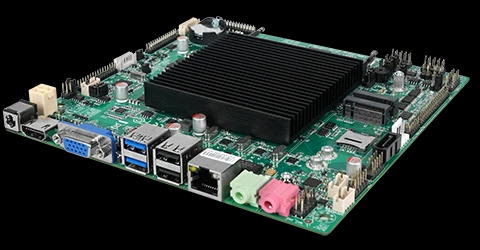

Detailed Support Intel® customizations Elkhart LakeJ6412/J6413 1*SO-DIMM DDR4 2933/2666MHz Max16GB Support VGA、HDMI/EDP2、LVDS/EDP1, Support Triple Display Support HDMI2.0 4K 60Hz Output Onboard 1*RTL8106 1000M（Options: 1000M、2*LAN） Support 2*USB3.2+8*USB2.0 Support 6*COM232，(Option: COM2 can Support 485) Support 1*M.2 KeyB 1*SATA 1*M.2 KeyE Onboard 1*MiniPCIe，Support Wifi6+Bluetooth /4G Module DC12V Power Supply

Products

Custom Made Solution

Self-service ordering and cashiering

pos machine

OPS

Industrial Computers

touchscreen model

screenless

Industrial Motherboards

Office Entertainment

industrial manufacturing

machine vision

Commercial Display

intelligent medical care

financial self-help

consult and display

intelligent interaction

Self-checkout system

Medical PCs

Server computer

All in one PC

Latest News

Virtual Currency Calculator Goes Live

November 19th at

What Are The Characteristics Of Intelligent Electronic Guide System

June 19th at

Why Are The Hospitals Equipped With A Check -up Call System?

June 19th at

Mall Guidance System To Help Smart Merchants Informatization Construction

June 19th at

The Best Products

Super Slim Hanging Ceiling Mounted Double Sided Dual Screen Advertising Shop Window Display Advertising LCD Display Dual Screen

34 inch curved all-in-one computer

Product Details

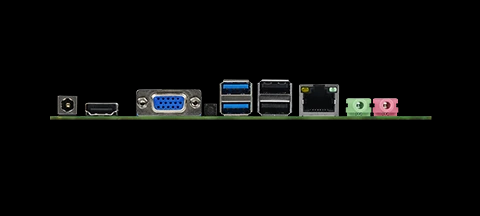

CPU	The first Intel® customizations Elkhart Lake	Rear I/O	1DC（φ5.5&2.5mm DC Jack） 1HDMI 1VGA 2USB3.0 1CMOS 2USB2.0 （LAN2 or 2USB2.0 ） 1HP_OUT 1*MIC_IN
Chipset	Elkhart Lake
GPU	Intel UHD Graphics
Display	VGA、HDMI/EDP2、LVDS/EDP1
Muilt Display	VGA+HDMI/EDP2+LVDS/EDP1
Muilt Display	Triple Display(synchrony/asynchrony)
USB	2USB3.0+8USB2.0
Memory	1*SO-DIMM DDR4 2933MHz Max16GB	Internal I/O	1EDP2 PIN（This pin has no function by default, if you want to use it, we need to update the BIOS firmware） 1VGA_H PIN 1F-AUDIO PIN 1SPEAKER PIN 3F_USB2.0 PIN（can be extended to 7USB2.0） 1SATA PIN 1SATA_PWR PIN 1JPS2 PIN 1J_PRINT PIN 1F_PANEL PIN 2COM232 PIN（ Support 1RS485，COM1 and COM2 support DCD/5V/12V） 1COM_CON PIN（4COM232） 1GPIO PIN 1LVDS PIN/1EDP1 PIN 1INVERT PIN 1SIM Slot 1*ATX PIN
Audio	Onboard audio decoder controller
Audio	Built-in Amplifier out3W@4Ω 1.7W@8Ω max
Network	Onboard 1*Realtek RTL8106 1000M
Network	(Options: 2*LAN、Gigabit LAN）
Storage	1M.2 KeyB ; 1M.2 KeyE
Slot	1*Mini_PCIe( Support WIFI&Bluetooth/4G)
I/O Chip	ITE8786E-I/ITE8784E-I
BIOS	AMI BIOS
Power	DC/4PIN DC12V Power Supply
Cooling	FANLESS
Operating	Operating:0~60℃; Storage: -20~75℃ 0%~95%
Environment	Relative Humidity,Non-condensing
Size	170X170MM
