Minimum order quantity: 200 Pieces

Delivery time: 15 Day

E-mail: xwh@cnzeroone.com

Product Advantages

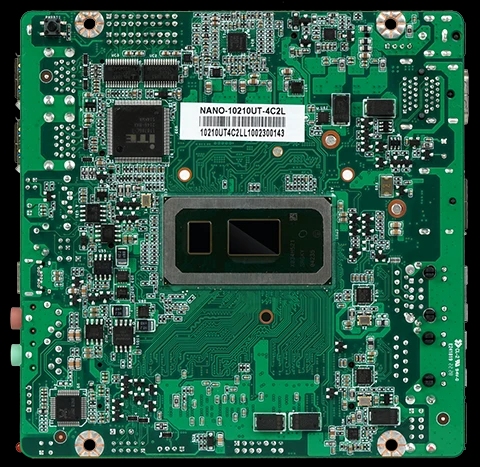

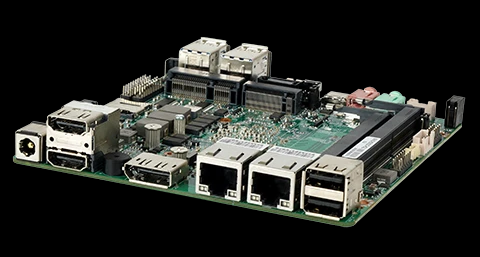

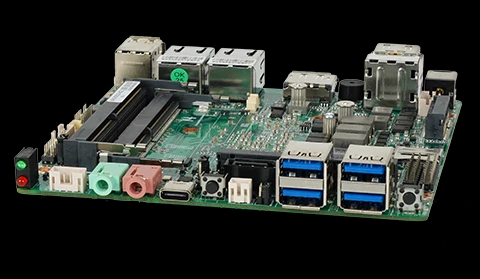

Details >Supports Intel® WhiskeyLake & CometLake Processors >Support Dual Channel SO-DIMM DDR4 2666MHz Max32GB >Support 2*HDMI+1*DP output, three displays with asynchrony >Support 2*Realtek RTL8111H/8111G Gigabit LAN card (Single LAN 》optional) >Support 2*USB2.0; 4*USB3.2 Gen2 (10Gbps); 1*Type-C (when the >CPU uses Base-U, Type-C without USB3.0 signal) >1*M.2 M Key, support PCIEX4 signal, 1*SATA3.0 >1*mPCIE, support Wifi/Bluetooth; 1*SIM card slot; 1*M.2 E Key, >3G/4G/5G module expansion (5G not supported when using Base-U) >DC 12~19V power supply

Products

Custom Made Solution

Self-service ordering and cashiering

pos machine

OPS

Industrial Computers

touchscreen model

screenless

Industrial Motherboards

Office Entertainment

industrial manufacturing

machine vision

Commercial Display

intelligent medical care

financial self-help

consult and display

intelligent interaction

Self-checkout system

Medical PCs

Server computer

All in one PC

Latest News

Virtual Currency Calculator Goes Live

November 19th at

What Are The Characteristics Of Intelligent Electronic Guide System

June 19th at

Why Are The Hospitals Equipped With A Check -up Call System?

June 19th at

Mall Guidance System To Help Smart Merchants Informatization Construction

June 19th at

The Best Products

Super Slim Hanging Ceiling Mounted Double Sided Dual Screen Advertising Shop Window Display Advertising LCD Display Dual Screen

34 inch curved all-in-one computer

Product Details

CPU	Intel ® WhiskeyLake&CometLake processor	Post I/O interface	1 * DCIN port
Chipset	Intel® SOC		1 * HDMI Port Double Seat 1 * DP Port
Display chip	Intel ® Core graphics card		1 * LAN2 port (optional with 2 * USB2.0)
Display output	2HDMI+1DP		1 * LAN1 port
Multi display support	Three display synchronous asynchronous		1 * USB2.0 port
USB	4USB3.2 Gen2（10Gbps）；2USB2.0；1*Type-C	Internal I/O pin	1 * LED status indicator light
Memory	2*SO-DIMM DDR4 2666MHz Max32GB		1 * F_ OUT port
sound effects	On board ALC662 audio decoding controller;		1 * F_ MIC port
sound effects	Independent power amplifier NS4251（ 3W@4 Ω MAX)		1 * Type-C port
Network card	On board 2 * Realtek RTL8111H/8111G Gigabit Ethernet card		1 * RST button
storage	1 * SATA3.0; 1 * M.2 M Key,		2 * USB3.0 port
storage	supporting PCIEX4 signal		1 * PWR_ ON button
Expansion slot	1 * mPCIE, supporting WiFi/Bluetooth;	Front I/O interface	1 * TPM pin 1 * CPUFAN socket
Expansion slot	1 * SIM card slot; 1 * M.2 E Key		1 * R_ USB2.0 pin (expandable 2 * USB2.0)
I/O chip	ITE8786E-I		1 * GPIO pin
BIOS	AMI BIOS		1 * Speaker socket
power supply	DC/4PIN ATX 12~19V power supply		1 * F_ PANEL pin
Cooling System	Requires self equipped CPU heat sink		1 * SATA socket
Environment	Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃		1 * SATA_ PWR socket
Environment	0%~95% relative humidity, non condensing		4 * COM pin
Size	120X120mm		1 * ATX_ IN socket
