7 Inch Android HMI Panel PC AIO Touch Terminal Intel Capacitive Tablet Computer Network USB Windows 11 New Commercial Industrial Use, Multiple USB, COM Port

Home Products Industrial Computers touchscreen model

7 Inch Android HMI Panel PC AIO Touch Terminal Intel Capacitive Tablet Computer Network USB Windows 11 New Commercial Industrial Use, Multiple USB, COM Port

Minimum order quantity: 1 Pieces

Delivery time: 10 Day

E-mail: xwh@cnzeroone.com

Product Advantages

1. Portable and flexible: compact in size, convenient for carrying and installation in different scenarios. 2. Rich Android ecosystem: It can utilize a large number of Android applications and resources, with strong scalability. 3. Good intelligent interaction experience: Combining AI to provide more intelligent and convenient human-computer interaction. 4. Intuitive and convenient operation: The touch operation is simple and direct, making it easy to get started. 5. Relatively low cost: Compared to some large terminal devices, it has a certain cost advantage.

Products

Custom Made Solution

Self-service ordering and cashiering

pos machine

OPS

Industrial Computers

touchscreen model

screenless

Industrial Motherboards

Office Entertainment

industrial manufacturing

machine vision

Commercial Display

intelligent medical care

financial self-help

consult and display

intelligent interaction

Self-checkout system

Medical PCs

Server computer

All in one PC

Latest News

Virtual Currency Calculator Goes Live

November 19th at

What Are The Characteristics Of Intelligent Electronic Guide System

June 19th at

Why Are The Hospitals Equipped With A Check -up Call System?

June 19th at

Mall Guidance System To Help Smart Merchants Informatization Construction

June 19th at

The Best Products

Super Slim Hanging Ceiling Mounted Double Sided Dual Screen Advertising Shop Window Display Advertising LCD Display Dual Screen

34 inch curved all-in-one computer

Product Details

True Flat and Easy Clean

The android panel pc is with a true flat surface which is easy to maintain and clean, making the HMI a stylish look.

Next Generation Computing Power

The HMI provides next generation arm processing power and high computing performance with lower power consumption because of the RK3568 chipset.

P-Cap Touch Technology

P-Cap touch technology provides 10 points multi touch and a great protection from scratches. The HMI is easily controlled by fingers and improved convenience of using the control terminal board.

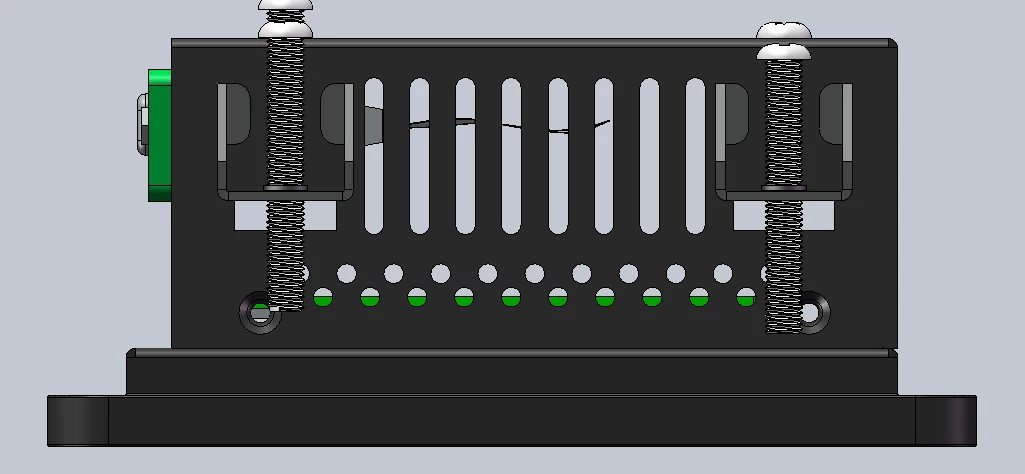

Mounting Clips

The HMI with mounting clips which supports quick installation allows you no need drill holes on the fixture, it also saves you time for mounting and guarantees the aesthetic look.

Display
Size	7.0 inches
Touch / Glass	Projected Capacitive Multi Touch Screen
Resolution	1024x600
Panel Brightness	320.0 nits
Contrast Ratio	1900:1
View Angles	75,75,75,70
Active Area	153.6x90 mm
System Specification
Processor	Rockchip 3568
Memory	2GB
Storage	eMMC: Onboard 16 GB
Operating System	Android 11
Mechanical
Dimension	21420064
Weight	0.9 kg
Mounting	Panel mount VESA Mount
Enclosure	Metal Housing
Cooling System	Fanless design

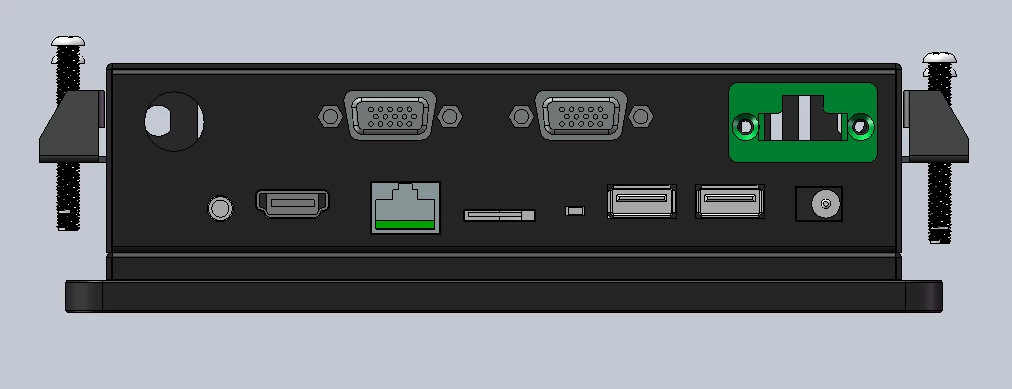

IO Ports
USB Port	2 x USB 3.0
Serial Port	2 x RS232
LAN	1 x LAN RJ45
Video	1 x HDMI
SD Card Slot	1 x Micro SD card slot
Power Input	1 x 12V DC, 1 x Phoenix Pin
