Intel® 14th Generation Ultra Processor (125U/125H)

Minimum order quantity: 200 Pieces

Delivery time: 15 Day

E-mail: xwh@cnzeroone.com

Product Advantages

Details >Intel® 14th Ultra Processor (125U/125H) >Support single channel SO-DIMM, DDR5 memory, 5600Mhz, Max 48GB >Support triple display asynchronous, LVDS1/EDP1 + HDMI2.1 +DP >Supports Intel Dual Network Interface, Vpro support >Support System Restore and Keyboard Shortcut Backup/Restore >DC 9-36V wide-voltage power supply >10 USB: 2*USB3.2 + 8*USB2.0 >6 COM ports (COM1 support TTL optional; COM2/3 support >RS232/485 optional) >1 M.2 M Key slot (SATA/PCIEx4 adaptive) >1 SATA3.0 interface >1 M.2 B Key Slot (4G/Optional 5G), 1 M.2 E Key Slot (SATA/PCIEx4 >Adaptive), 1 M.2 E Key Slot (SATA/PCIE

Products

Custom Made Solution

Self-service ordering and cashiering

pos machine

OPS

Industrial Computers

touchscreen model

screenless

Industrial Motherboards

Office Entertainment

industrial manufacturing

machine vision

Commercial Display

intelligent medical care

financial self-help

consult and display

intelligent interaction

Self-checkout system

Medical PCs

Server computer

All in one PC

Latest News

Virtual Currency Calculator Goes Live

November 19th at

What Are The Characteristics Of Intelligent Electronic Guide System

June 19th at

Why Are The Hospitals Equipped With A Check -up Call System?

June 19th at

Mall Guidance System To Help Smart Merchants Informatization Construction

June 19th at

The Best Products

Super Slim Hanging Ceiling Mounted Double Sided Dual Screen Advertising Shop Window Display Advertising LCD Display Dual Screen

34 inch curved all-in-one computer

Product Details

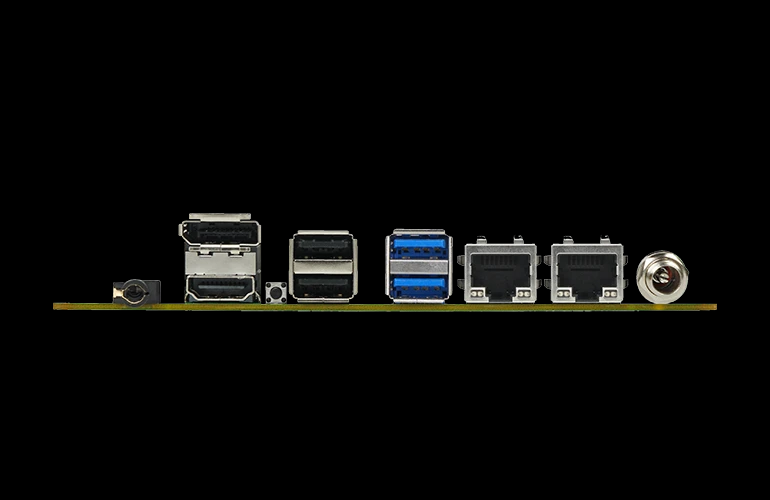

processor	Intel⑧14th UltraProcessor(125U/125H)	Rear I / 0	1 * The AUDIO port 1 * DP + 1 * HDMI double seat 1 * REC button (support system one-keybackup / restore and clear CMOS function) 2* USB2.0 2USB3.2 1 LAN1port 1 LAN2 port 1 DC _IN port
chip set	Intel⑧SOC
Display chip	Intel⑧Graphics
Displays the output	LVDS / EDP + DP + HDMI (HDMI 2.1 supports 8K@60Hz
More support	Three obvious asynchronous
USB	2USB3.2 Gen2(10Gbps)+8USB2.0
internal storage	1*SO-DIMM DDR55600M Hz Max48GB
sound effect	Onboard ALC897 audio decoding controller ; independent power amplifier NS42513W@40	Built-in needle	1 * F _ AUDIO pininsert 1 SPEAKER pininsert 3 USB pin (6 USB2.0 ports) 1 * F _PANEL pin 1 * GPIO (4-way) 1 * PS2pin 1 * The SATA interface 1 * SATA _ PWR p in 1 * BKCLpin 1 LVDS p in 1 INVCNpin 6 COM p in 1 CPU FAN pin 1 * ATXphoenixterminal
network card	Onboard 1 * Intel I 219 LM + i226-V (Compatible with i226-LM) Network card (Support Vpro)
memory	1 * M.2 M Key, supporting SATA / PCIEx4 adaptation ; 1 * SATA 3.0 interface
expansion slot	1 * M.2 B Key supports 4G / 5G module extension; 1 * M.2 E Key supports WIFI 6 / Bluetooth and supports CNVi

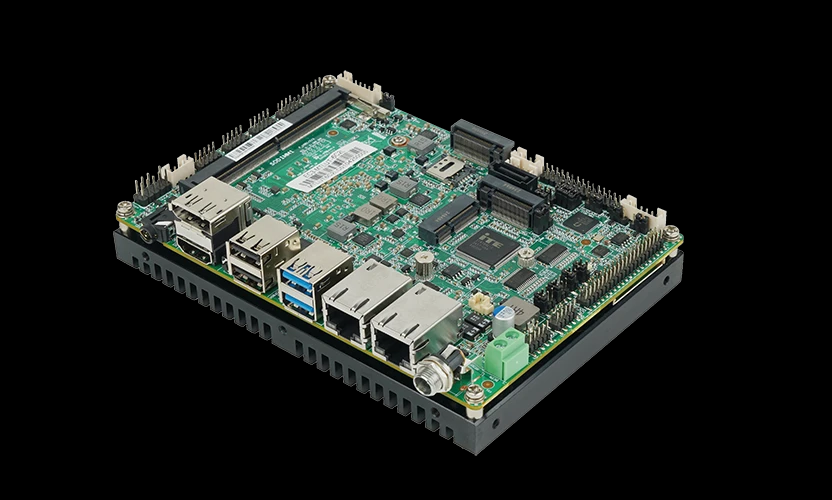

heat radiation	The default is fanless radiator, optional with fan radiator
BIOS	AMI BIOS
I/O slug	IT8786E
system	Window10/Window11/Li nux
supply electricity	DC 9V-36V wide voltage power supply
environment	Work: 0~60℃ ; storage: -20℃ ~75℃
environment	0%~95% relative humidity, with no condensation
size	146x102 mm
