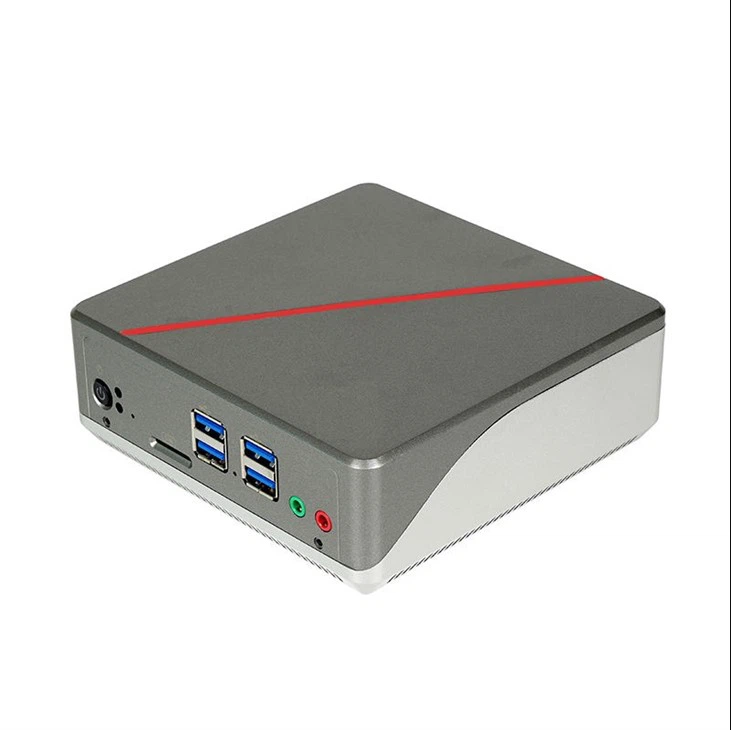

Intel Core Tiger Lake Box Mini PC

Home Products Industrial Computers screenless

Intel Core Tiger Lake Box Mini PC

Minimum order quantity: 1 Pieces

Delivery time: 10 Day

E-mail: xwh@cnzeroone.com

Product Advantages

1. Compact design: The Tiger Lake Box mini PC is compact and convenient to carry and install. 2. Powerful performance: Despite its small size, it typically comes with high-performance Intel Core processors. 3. Rich interfaces: These mini PCs are equipped with rich interfaces. 4. Good heat dissipation: The Tiger Lake Box mini PC body is designed with heat dissipation ducts and nets to ensure stable operation of the system. 5. High cost-effectiveness: Compared to traditional desktop computers, the Tiger Lake Box mini PC is relatively cheaper and has certain performance and functions.

Products

Custom Made Solution

Self-service ordering and cashiering

pos machine

OPS

Industrial Computers

touchscreen model

screenless

Industrial Motherboards

Office Entertainment

industrial manufacturing

machine vision

Commercial Display

intelligent medical care

financial self-help

consult and display

intelligent interaction

Self-checkout system

Medical PCs

Server computer

All in one PC

Latest News

Virtual Currency Calculator Goes Live

November 19th at

What Are The Characteristics Of Intelligent Electronic Guide System

June 19th at

Why Are The Hospitals Equipped With A Check -up Call System?

June 19th at

Mall Guidance System To Help Smart Merchants Informatization Construction

June 19th at

The Best Products

Super Slim Hanging Ceiling Mounted Double Sided Dual Screen Advertising Shop Window Display Advertising LCD Display Dual Screen

34 inch curved all-in-one computer

Product Details

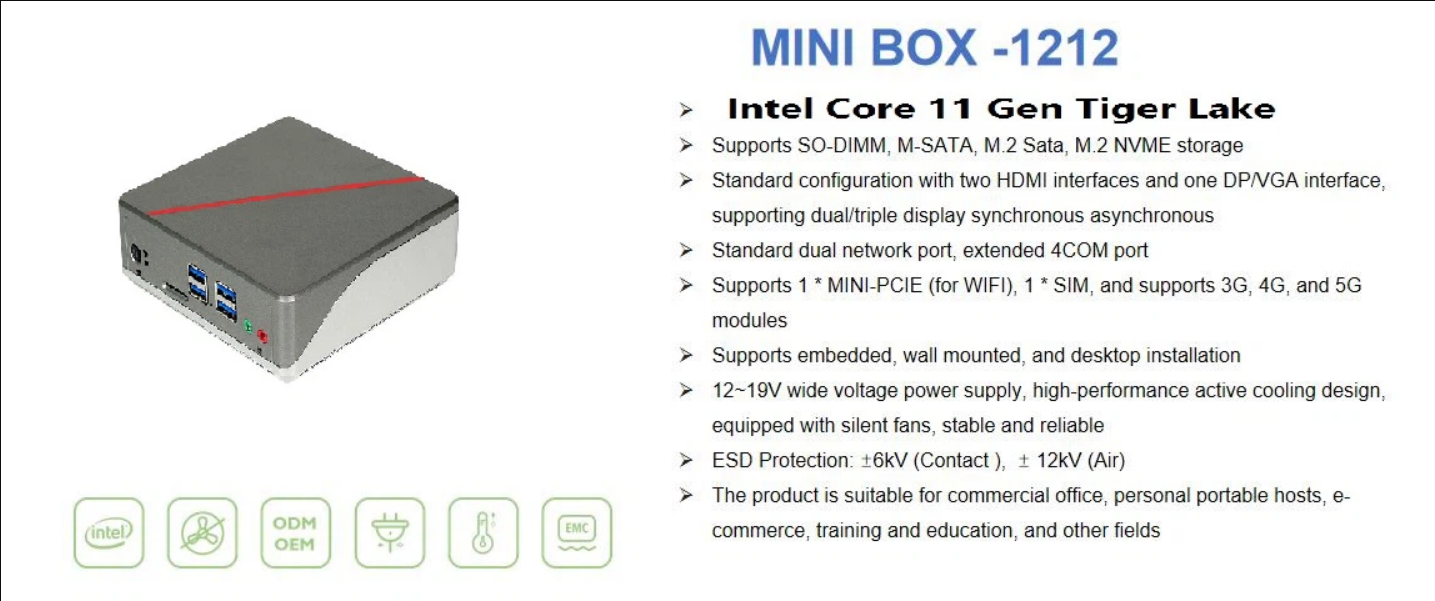

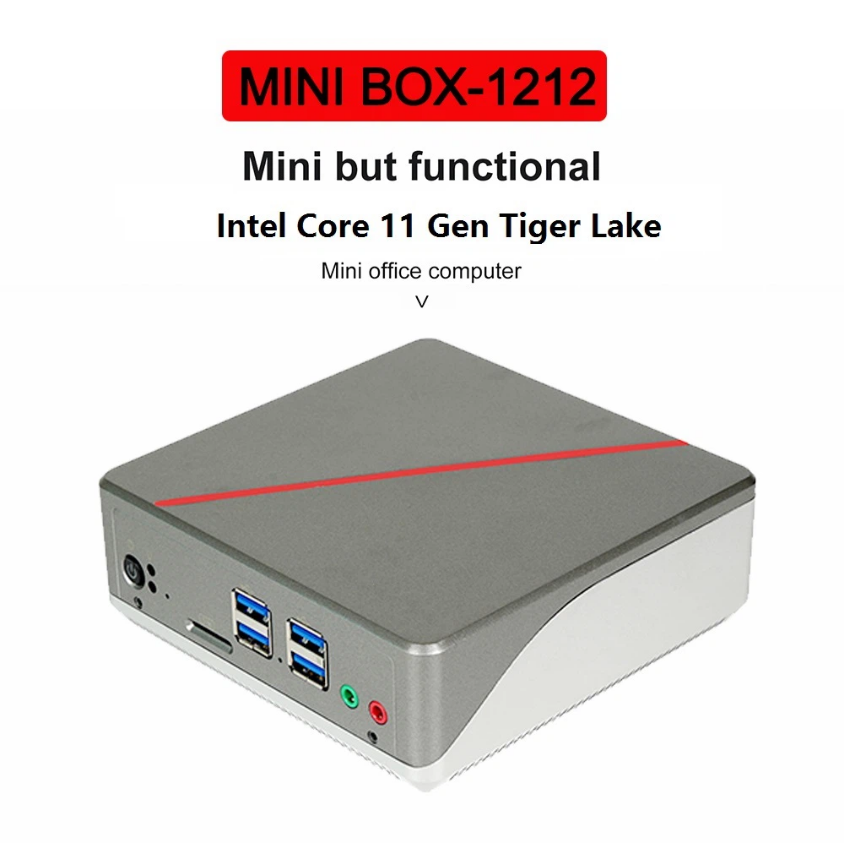

Product Model	MINI BOX-1212

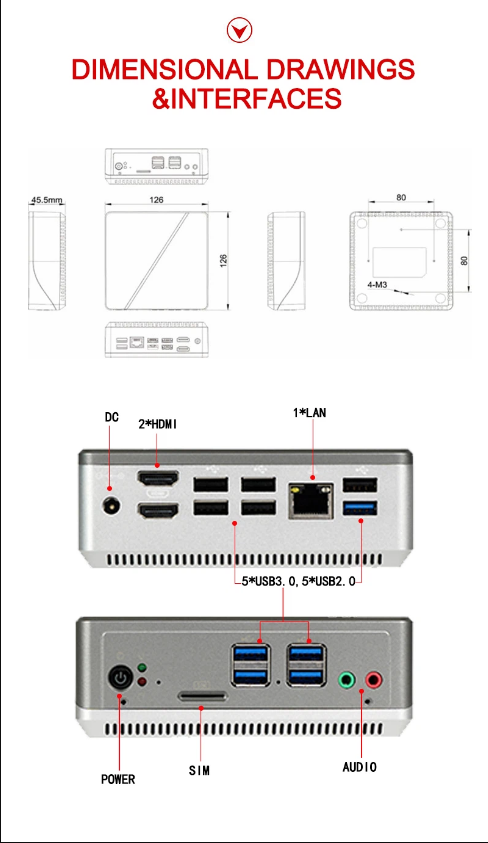

Size (mm)	≤ 126x126x45mm
Weight (kg)	≤ 0.5kg
Color	Space Grey
Luminance	Aluminum alloy structure++ABS
CPU	Tiger Lake
Memory	Intel® UHD Graphics 600
Built-in memory	2*RLT8111H/8111G
Decoding resolution	Realtek ALC662/ALC887
Playback mode	DDR4 2133/2400MHz Max 16G

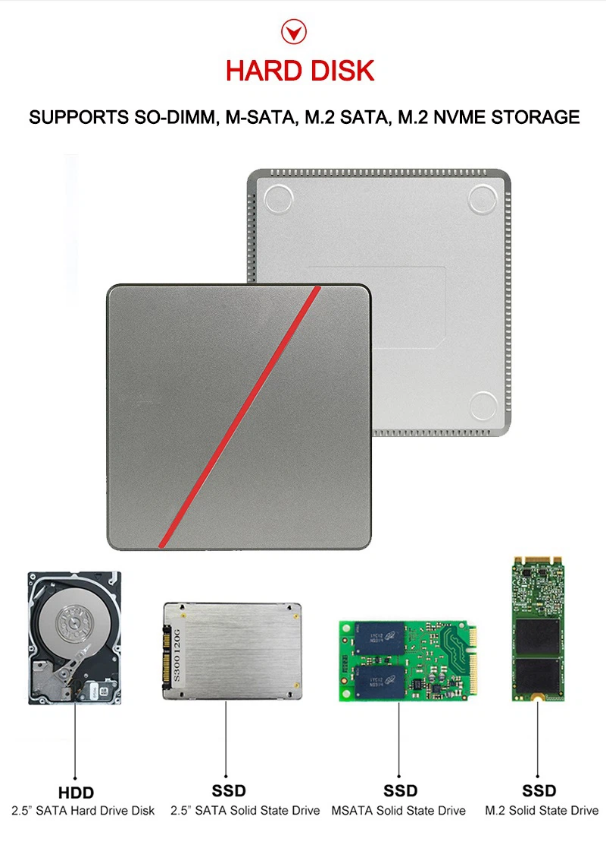

network support	M.2 2280 Sata 128GB
Function	Support WiFi, Bluetooth, 4G, watchdog, diskless startup, wake-on-LAN, power on startup

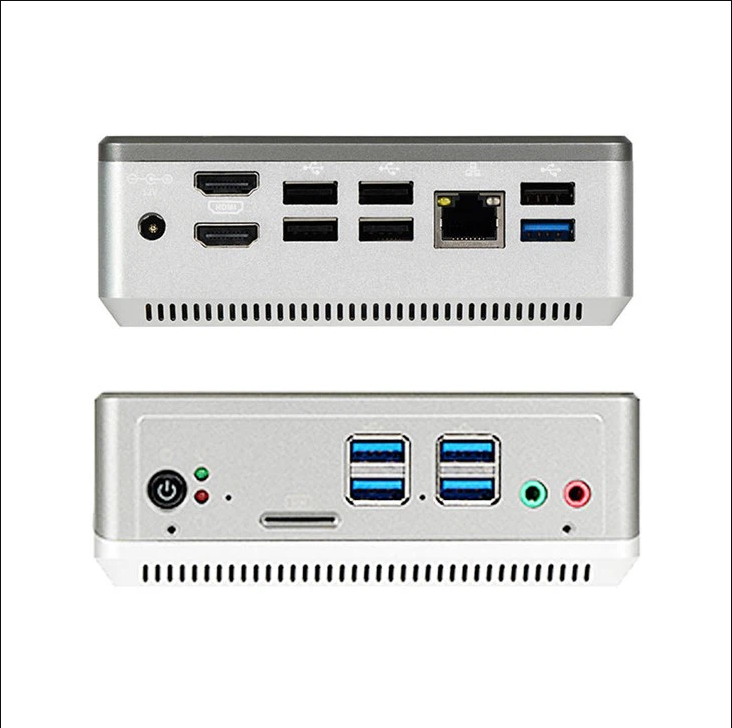

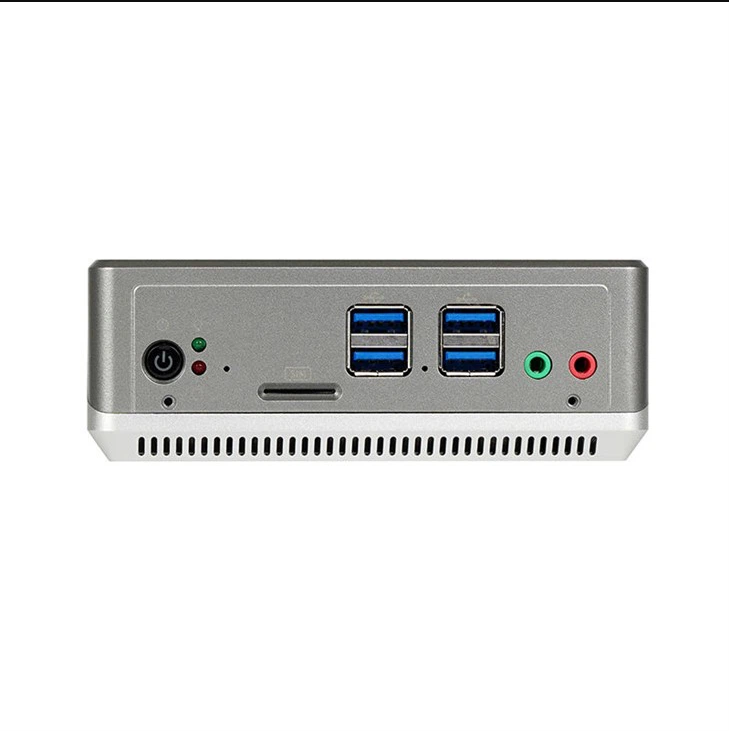

Upper I/O interface	1 * Power on button (LED)
	2 * LED (HDD&WiFi)
	1 * Reset&CLR_ CMOS buttons
	1 * SIM card slot
	4 * USB3.0 port
	1 * Ghost button
	1 * LINE OUT port
	1 * MIC-IN port

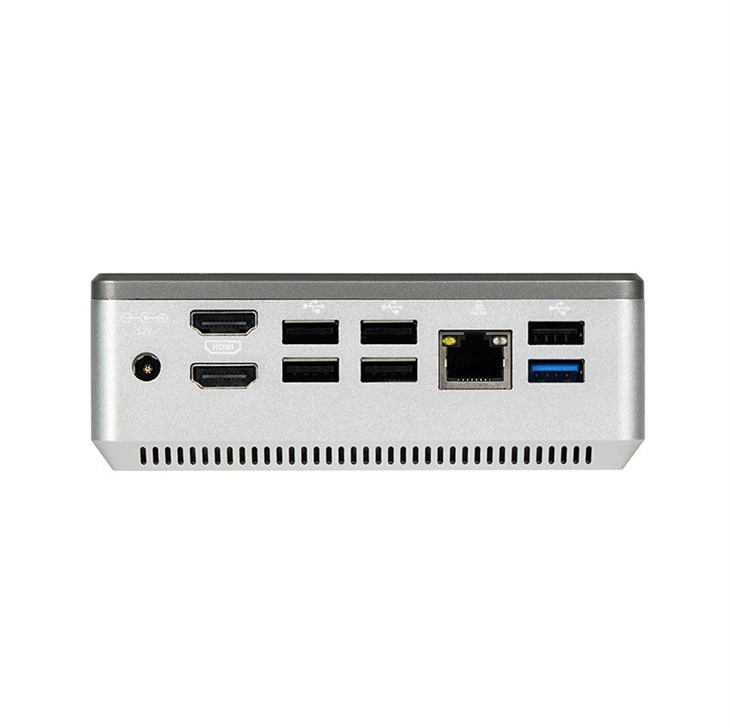

Lower I/O interface	3 * USB2.0 port
	1 * USB3.0 port
	1 * LAN port
	2 * USB2.0 port

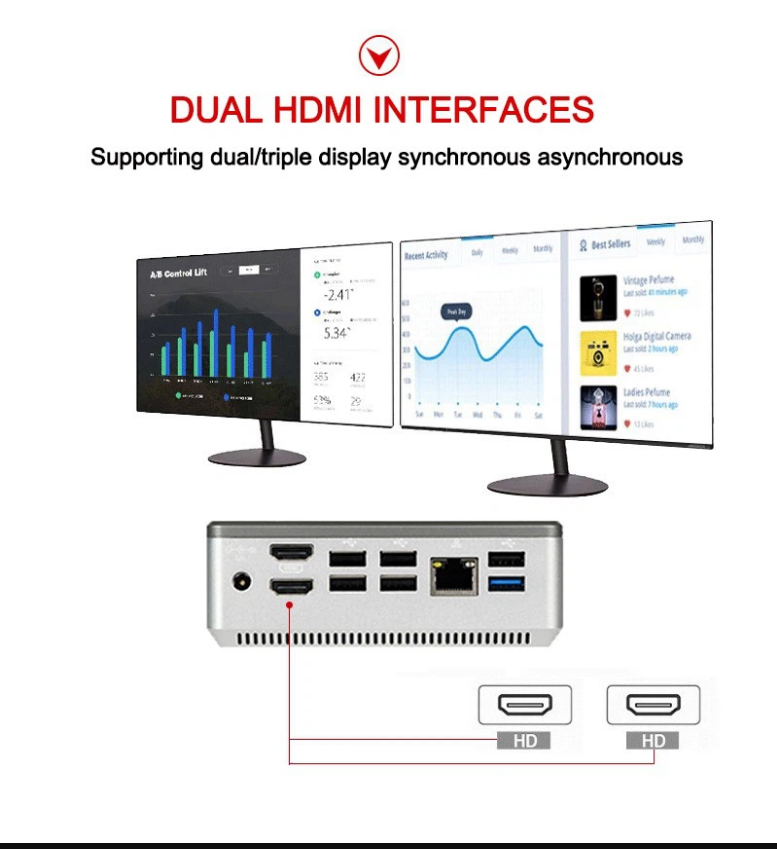

	2 * HDMI port
	1 * DC IN port
Power IN	DC 12V power supply
OS support	Support for WIN10/Linux
Power Adapter	INPUT : 100-240V 50/60Hz
	Power consumption :≤60W
	Output : 12.0V/5.0A
